Networking
| Supports ISDN connection |
Y |
| MAC address table |
8000 entries |
| Management protocols |
SMTP v3 |
Security
| Firewall security |
StatefulInspection, antiDoS, ACL, ALGs |
| Authentication method |
802.1x |
| VPN support |
IPSec (100 tunels)\nDES/3DES/AES\nXAUTH, DigitalCertiphicates, PSK,Secure ID |
| NAT functionality |
NAT(1:1)/NAPT(Many:1)\nSIP ALG |
| VPN tunnels quantity |
100 |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 |
| Modem speed |
64 Kbit/s |
| Bandwidth |
8.8 Gbit/s |
| Interface |
LAN, WiFi, DIM, NIM |
| Internal memory |
128 MB |
| Flash memory |
32 MB |
| Memory and processor |
266MHz, MPC 8248 |
| Input frequency |
50 - 60 Hz |
| Supported protocols |
eBGP/iBGP\nPPP \nOSPF\nPPPoE\nRIP (v1 / v2)\nPPPoA\nDemandRouting\nRFC 1483\nGRE\nMultilink PPP\nHDLC\nATM (ADSL)\nPPP Dial Backup\nFrameRelay\nPAP / CHAP\nMultilink Frame Relay\nMultihoming\nLayer 3 Backup\nMultiVRF CE\nPIM SparseMode\nIGMP v2\nPolicyBased Routing\nVRRP |
| Networking features |
24 x 10/100BaseT, 2 x 10/100/1000BaseT |
| Input voltage |
100 - 250 V |
| Data transfer rate |
54 Mbit/s |
| Frequency range |
2.4 & 5 GHz |
Ethernet LAN features
| Full duplex |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
2 |
Power
| Power over Ethernet (PoE) |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
URL |
| Ethernet LAN (RJ-45) ports quantity |
24 |
24 x RJ-45 ports 10/100BaseT, 1 x RJ-45 10/100/1000Base-T, Wi-Fi IEEE 802.11a/b/g 54 Mbps, Auto-Duplex, Auto-Rate, Auto-MDI/MDI-X, VPN, VQM, DHCP, TACACS+, RADIUS, RAM 128 MB, Flash 32 MB, 266 MHz MPC 8248

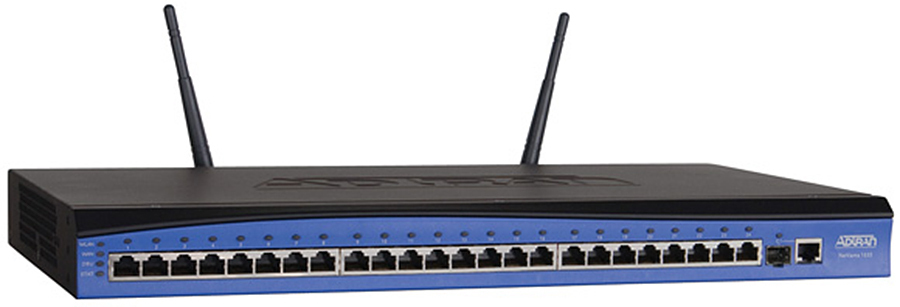

A Multiservice Access Router that delivers the high-packet throughput required for IP Telephony, corporate connectivity, and Internet access. This performance-enhanced routing platform delivers wire-speed WAN throughput, even with advanced services like VQM, QoS, NAT, Firewall, and VPN-enabled.
- Standards-based routing/switching protocols
- RapidRoute technology for greater performance
- IPSec Virtual Private Network (VPN) for secure corporate connectivity across the Internet
- Voice Quality Monitoring (VQM) and Mean Opinion Score (MOS) prediction
- Inherent URL filtering to manage Internet access
- CompactFlash slot for backup and restore, and for auto-provisioning
- Wi-Fi Access Controller for centralized management of NetVanta Wireless Access Points (WAPs)
- Optional 802.3af-complaint Power over Ethernet Switch
- Optional 802.11a/b/g Wireless Access
Features and Benefits
- Multiservice access router supporting up to two T1s
- RapidRoute technology for greater performance
- Integral 24-port Ethernet switch (Layer 2/3)
- Two Gigabit SFP/1000Base-T ports for high-speed uplink or stacking
- Inherent URL filtering to manage employee Internet access and enforce Internet usage policies
- Standards-based routing/switching protocols
- IPSec Virtual Private Network (VPN) for secure corporate connectivity across the Internet
- Voice Quality Monitoring (VQM) and Mean Opinion Score (MOS) prediction
- CompactFlash slot for backup and restore, and for auto-provisioning
- Stateful inspection firewall for network security
- Recognizable Command Line Interface (CLI) to reduce learning curve
- Intuitive Web-based Graphical User Interface (GUI) with step-by-step setup wizards
- Wi-Fi Access Controller for centralized management of NetVanta Wireless Access Points (WAPs)
- Industry-leading five-year North American warranty
