Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000/2500 Mbps |
| Number of VLANs |
255 |
Other features
| Authentication method |
IEEE 802.1x, Radius, TACACS+ |
| Bandwidth |
62 Gbit/s |
| Input frequency |
50 - 60 Hz |
| Diagnostics |
LLDP, LLDP-MED, SFP, Cable |
| Installed ports |
28 |
| Remote administration |
CLI (Console/Telnet/SSH) |
| Networking features |
Gigabit Ethernet, 1.0/2.5 Gbps SFP |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| 10G support |
N |
Security
| SSH/SSL support |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Fiber ports quantity |
4 |
| Console port |
RS-232 |
| Gigabit Ethernet (copper) ports quantity |
24 |
Protocols
| Management protocols |
SNMP v3 |
Power
| Input voltage |
110 - 230 V |
| Input current |
4.9 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
28 x RJ-45 ports, 24 x 10/100/1000Base-T, Layer 3, 4 x SFP, 62 Gbps, RS-232, PoE/PoE+

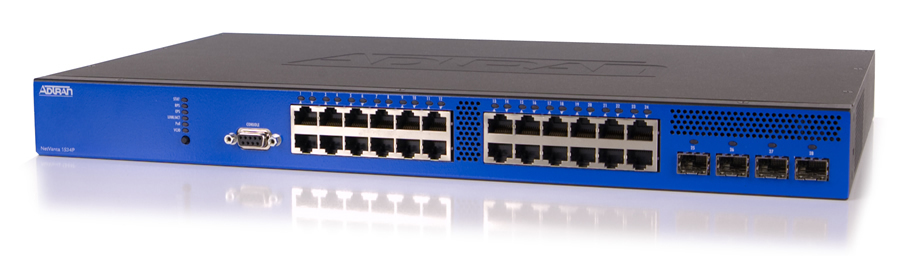

The NetVanta 1534P is a managed, 28-port PoE, Layer 3 Lite, Gigabit Ethernet switch designed for fast, secure, cost-effective Local Area Network (LAN) switching. This scalable, full-featured business-class switch is perfect for higher-bandwidth Voice over IP (VoIP) applications needing PoE to power IP Phones, as well as Gigabit-to-the-desktop deployments. Experience the ease of management with an easy-to-use Web-based Graphical User Interface (GUI) and familiar Command Line Interface (CLI).
Features and Benefits
- 28-port multi-layer Gigabit Ethernet switch
- 24-Gigabit Ethernet ports and four SFP optical ports
- Two standard 1 Gbps SFP ports and two enhanced 2.5 Gbps SFP ports
- 802.3af (PoE), 802.3at (PoE+) and Legacy PoE
- Non-blocking, up to 62 Gbps switching capacity
- Line rate Layer 2 and Layer 3 Lite capabilities
- Desktop security audit
- DHCP network forensics
- 802.1Q VLANs, Private VLANs and VLAN assignment via 802.1x
- Advanced QoS with support for 802.1p and DiffServ prioritization with four queues per egress port
- Automate actions with Port Scheduler and TCL scripting
- VoIP ready with LLDP/ LLDP-MED and voice VLANS
- Business-class security with RADIUS, TACACS+, 802.1x and port security
- Wi-Fi access controller for centralized management of NetVanta Wireless Access Points (WAPs)
- Cable and SFP diagnostics provides easy to use troubleshooting tools for copper and fiber cable
- Familiar CLI and Web GUI
- Next business day advance replacement
- Limited lifetime warranty
