Memory
| Supported memory clock speeds |
1066 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Performance
| BIOS memory size |
2 MB |
| BIOS type |
AMI |
Ports & interfaces
| Serial ports quantity |
2 |
| DVI port |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Motherboard
| Supported processor frequency (max) |
2.933 GHz |
| Number of processors supported |
1 |
Other features
| Number of processors installed |
1 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express x1 slots |
1 |
| PCI Express slots version |
2.0 |
Processor
| Processor boost frequency |
2.93 GHz |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
35 W |
| L3 cache |
3 MB |
| Processor cores |
2 |
| Built-in processor |
N |
| Processor frequency |
2.4 GHz |
Graphics
| On-board graphics adapter |
Y |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| LAN controller |
Intel 82577LM |
| Wi-Fi |
N |
Storage
| Optical drive type |
N |
| Card reader integrated |
N |
Additionally
| Chipset |
Intel QM57 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel QM57, Intel Core i5-520E, DDR3, SATA II, USB 2.0, Gigabit Ethernet, 4kg

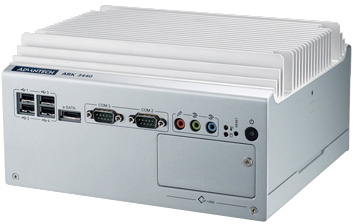

- Intel Core i3/i5/i7 Fanless Embedded Box PC;
- Multi-display and support for wide screen with high resolution;
- Supports 2 GbE, eSATA, 6 USB 2.0, audio and 3 COM ports;
- Two internal 2.5" SATA HDD drive bays;
- Various expansion interfaces for diverse applications;
- Easy integration, easy maintenance, and wide input voltage range 9 ~ 34 V;
- IP40;
- Supports embedded software APIs and Utilities.
