Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Serial ports quantity |
1 |
| Headphone outputs |
2 |
| DC-in jack |
Y |
Memory
| Memory slots |
1x SO-DIMM |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
4 GB |
| Memory clock speed |
800 MHz |
| Internal memory |
2 GB |
Graphics
| Discrete graphics adapter model |
NVIDIA ION 2 |
Processor
| L2 cache |
1 MB |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Storage
| Storage media |
HDD |
| Card reader integrated |
N |
| Total storage capacity |
160 GB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
Intel Atom D525 1.8GHz, Intel ICH8M Chipset, 2GB DDR3 800MHz SO-DIMM, 1x2.5" 160GB SATA HDD, nVidia ION 2, Wi-Fi, Ethernet, VGA, RS-232, Windows Embedded Standard 7E

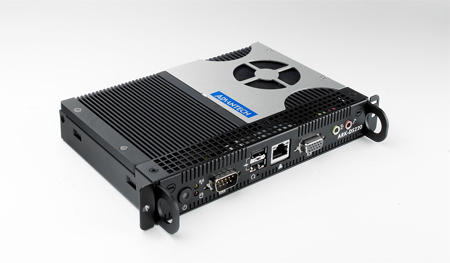

The very compact (200 x 119 x 30 mm) ARK-DS220 digital signage player is an Intel® OPS (Open Pluggable Specification) digital signage platform that helps standardize the design and development of media player and display. Development, installation, management, maintenance and upgrade are all easy. The ARK-DS220 is powered by Intel® Atom D525 dual-core (fan-based) or Intel® Atom™ N455 single-core processor (fanless) with built-in graphic. ARK-DS220 also supports 1x GigaLAN, 1x COM port, and 2x USB2.0, giving a great selection of data communications for display applications. The entire design makes digital signage applications more intelligent and connected.
- Integrated NVIDIA GT218 (ION2) graphic module for Full HD playback
- Designed compliant with OPS (Open Pluggable Standard)
- Embedded Intel® Atom™ D525 dual-core (fan-based) or Intel® Atom™ N455 single-core processor (fanless)
- Supports HDMI, DP, UART, and USB2.0 via JAE 80-pin connector
- Slot-in integration, easy maintenance
- Supports , SUSIAccess and Embedded Software APIs
