Ports & interfaces
DC-in jack |
Y |
HDMI ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Microphone in |
Y |
Headphone outputs |
1 |
Line-out |
Y |
Processor
Processor frequency |
1.6 GHz |
Processor cores |
1 |
L2 cache |
0.5 MB |
Motherboard southbridge |
Intel ICH7M |
Storage
Card reader integrated |
N |
Total storage capacity |
250 GB |
Storage media |
HDD |
Memory
Internal memory |
1 GB |
Internal memory type |
DDR2-SDRAM |
Maximum internal memory |
2 GB |
Memory slots |
1x SO-DIMM |
Audio
Audio system |
Realtek ALC888 |
Graphics
Maximum graphics adapter memory |
224 MB |
Additionally
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |
Chipset |
Intel 945GSE Express |

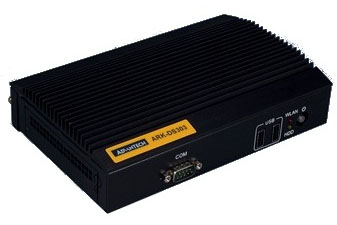

Intel Atom N270 1.6 GHz, 1GB DDR2 RAM, 250GB SATA HDD, Intel GMA950, HDMI, VGA, Gigabit Ethernet, RS 232, 1.2 kg, Windows 7 Embedded
- Intel® Atom™ processor N270 1.6 GHz and System Controller Hub 945GSE
- Supports HD up to 720P; optional support up to 1080P with add-on HD decoding module
- Dual display of HDMI and VGA
- Built-in Mini PCIe slot for easy expansion e.g. WiFi
- Supports 4 x USB 2.0 (Internal 2 x USB 2.0), 1 x COM
- Supports VESA mounting
