Memory
| Supported memory clock speeds |
800, 1066 MHz |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
2 GB |
Ports & interfaces
| Serial ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Supported storage drive types |
HDD, SSD |
Motherboard
| Number of processors supported |
1 |
Graphics
| On-board graphics adapter |
Y |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
3.5 W |
| L3 cache |
1 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.6 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel vPro Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
Networking
| LAN controller |
Intel 82583V |
| Wi-Fi |
N |
Design
| LED indicators |
Y |
| Cooling type |
Passive |
Certificates
| Safety |
UL, CCC, BSMI |
| Energy Star certified |
Y |
Power
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Additionally
| Chipset |
Intel NM10 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel Atom N2600 (1M Cache, 1.6 GHz), AMI uEFI 16 Mbit, DDR3 1066/1333MHz, VGA, DP, 4 x USB 2.0, 19 V DC
- Unified 19 mm-thin chassis powered by Intel multiple platforms (TDP up to 45W)
- Dual 1080P displays by on-board VGA & DisplayPort (HDMI)
- DC input 19V
- Compact in size allows installation in limited space
- Highly expandable via internal Mini-PCIe interface (e.g. WLAN, 3G or TV tuner)
- Supports iManager, SUSIAccess and Embedded Software APIs
- Design compliant with Energy Star 5.2

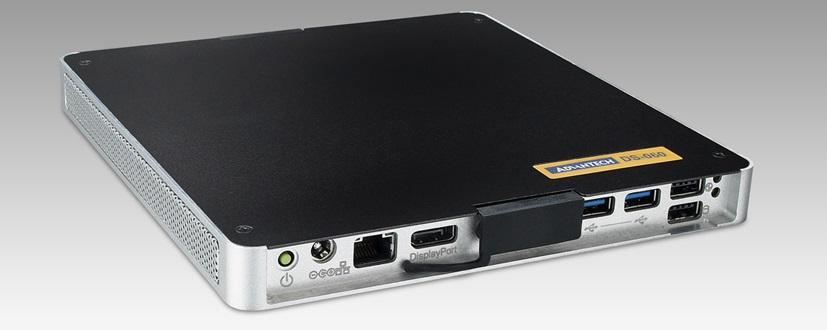

Measuring a mere 19 mm thick, DS-060 is undoubtedly the world’s slimmest digital signage player powered by a 3rd generation Intel® Core™ i7 processor (up to 45 watts TDP). This thin-and-powerful media player is equipped with 1x digital, plus 1x analog display outputs, and simultaneous dual 1080P(FHD) capability delivers a premium visual experience for when graphics performance really matters. Windows® Embedded OS, Linux, and Android are supported, with iManager preloaded, and SUSIAccess for Signage is also on offer. We’ve designed the DS-060 series in the smallest possible form factor, for optimized performance.
