Networking
| Supports ISDN connection |
N |
| Media access protocol |
CSMA/CA |
| Receiver sensitivity |
802.11g: -68dBm\n802.11b: -80dBm |
Other features
| Supported data transfer rates |
54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| xDSL connection |
N |
| Frequency range |
2.400 - 2.484 GHz |
Wireless LAN features
| Modulation |
16-QAM, BPSK, CCK, DQPSK, QPSK |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

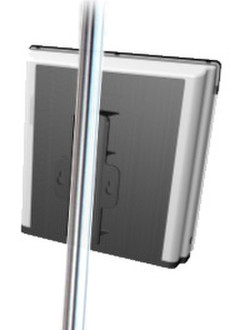

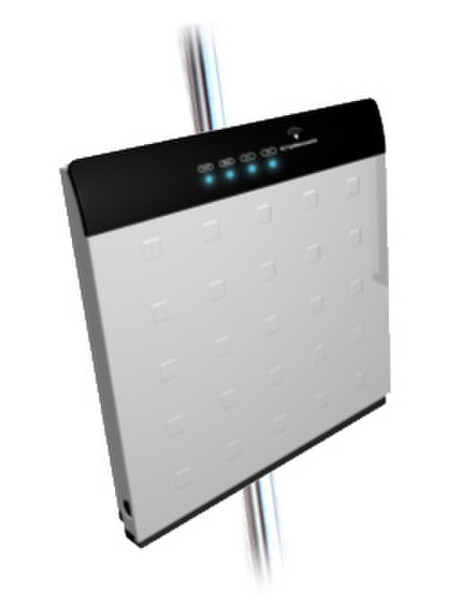

Advantek Networks AWN-54HP-ORT is an Outdoor Wireless-G Router which equipped with the 14dBi High Power Wireless Outdoor antenna.
This PoE (Power-Over-Ethernet) Router/Access Point is capable of providing secure Wireless-G, 54Mbps wireless routing and bridging in a durable all-weather outdoor environment. This device comes with a built-in directional antenna for professional long distance wireless bridging applications. The powerful 14dBi antenna can also be used in a more challenging extended range projects. Power is supplied through included Power over Ethernet connector, resulting in equipment and installation cost savings.
AWN-54HP-ORT comes with the latest wireless security protocols which ensure highest level of network protection. Package also includes a mounting kit.
Features
- All-in-one Internet-sharing AP Router, 4-port 10/100 Ethernet Switch, 54Mbps Wireless-G (802.11b/g)
- Share a single Internet connection and other resources with Ethernet wired and Wireless-G/B devices
- High security: TKIP and AES encryption, wireless MAC address
- Supports Inter-Access Point Protocol (IAPP)
- Supports Wireless Distribution System (WDS)
- Support PPPoE, VPN pass-through w/ multiple sessions, PPTP & L2TP
- Supports firewall security with port filtering, IP filtering, MAC filtering,
- port forwarding, trigger port and DMZ hosting functions
- Supports PPTP Client on Ethernet WAN interface
- Supports UPnP for automatic Internet access
- Supports WISP (Wireless ISP)
- 802.11b/g compliant with up to 54Mbps high-speed data rate
- DHCP Server/Client
- Dynamic DNS
- TCP/UDP/ICMP/ARP protocol stack
- Wireless users access control modes: AP, AP client (adhoc and infrastructure), Bridge (point-to-point and point-to-multipoint)
- Universal Plug and Play, no complicated installation necessary
- Quick and easy setup with Web-based management utility
- Web-based management and remote management
- Detachable antenna allows user to replace higher gain antenna
- Power Over Ethernet (POE) support
- Weather-proof case
- Mounting Kit
