Networking
| Supports ISDN connection |
N |
| Receiver sensitivity |
IEEE 802.11b: -84 dBm \nIEEE 802.11g: -60 dBm |
Other features
| Supported data transfer rates |
11, 54, 85, 100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
| xDSL connection |
N |
| Input voltage |
12 V |
| Input current |
1 A |
| Frequency range |
2.400 - 2.484 GHz |
Security
| Firewall |
Y |
| MAC address filtering |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

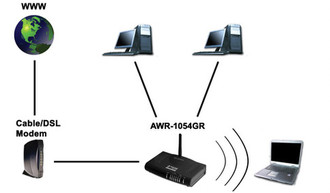

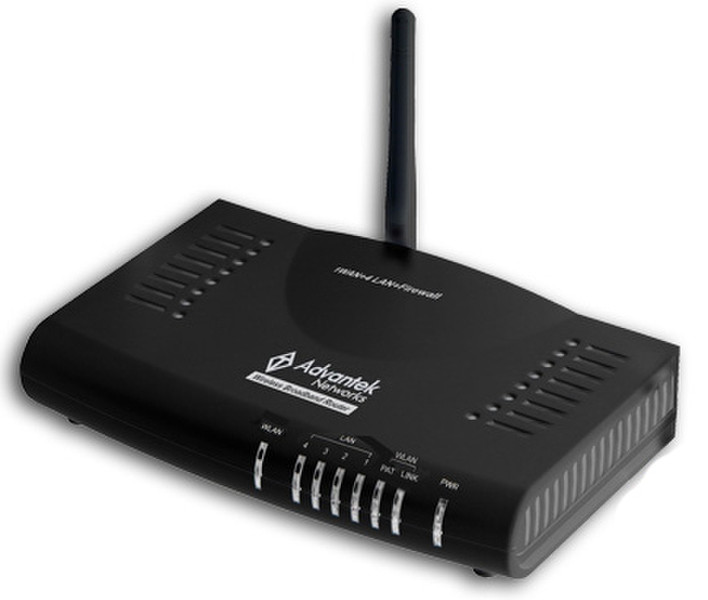

Advantek Networks new AWR-1054GR is a full-featured wireless broadband router that establishes wireless connection from AP then provides direct connection to local area network or individual PC with build-in 4-port 10/100Mbps switch. AWR-1054GR uses advanced broadband router chipset solution to provide complete set of industry standards for high-speed Internet access. AWR-1054GR offers easy installation and cost-effective connection for Business, SOHO and residential users.
AWR-1054GR wireless broadband router provides maximum transfer rate up to 85 Mbps from WAN to LAN, 100 Mbps from LAN to LAN and up to 54 Mbps through wireless channel. AWR-1054GR provides password protected configuration function that guarantees the best security on CO settings. There is no need for user intervention. AWR-1054GR also features DHCP function which allows the server to assign IP addresses to all workstations on the LAN.
Features
- Maximum transfer rate up to 85 Mbps from WAN to LAN, 100 Mbps LAN to LAN and 11/54 Mbps through wireless channel enables High-speed access to ISP or corporate network
- Friendly GUI Configuration and Management software
- Supports IEEE 802.3 full duplex flow controlBuilt-in DHCP server automatically assigns IP address to all workstations on your LAN
- 802.11b/802.11g provides WEP Encryption and SSID functions for security purpose
- Supports MAC filter, Client filter, URL and IP filter blocking and Hacker pattern detectionl
- Supports ALGs (Microsoft NetMeeting, MSN Messenger, Windows Media Player, DirectX 8.0, PPTP pass through, IPSec pass through, FTP, ICMP, SMTP, POP3, DNS, Telnet, HTTP, HTTPS, H.323, SIP, Real Audio, CuSeeMe, AOL, and Games)
- Non-Detachable Antenna
