Networking
| Supports ISDN connection |
N |
| Receiver sensitivity |
IEEE 802.11b: -83 dBm\nIEEE 802.11g: -70 dBm |
Other features
| Supported data transfer rates |
11, 54, 85, 100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
| xDSL connection |
N |
| Input voltage |
12 V |
| Input current |
1 A |
| Frequency range |
2.400 - 2.484 GHz |
Security
| Firewall |
Y |
| MAC address filtering |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

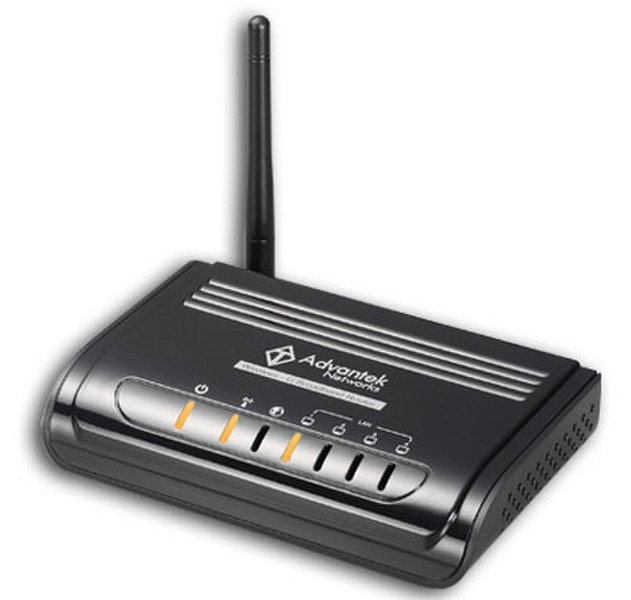

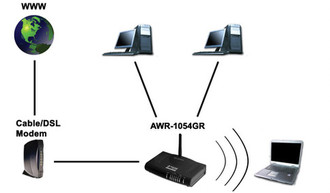

AWR-654GR is a full-featured wireless broadband router that establishes wireless connection from AP then, provides direct connection to local area network or individual PC with build-in 4-port switch.
AWR-654GR uses advanced Atheros AP SOC with on Atheros 5-Port Switch controller solution provides complete set of industry standard features for high-speed Internet access. AWR-654GR offers easy installation and cost-effective connection for corporate, SOHO and residential users.
AWR-654GR wireless broadband router provides 11/54 Mbps through wireless channel and provides password protected configuration function guarantees the best security on CO settings. Included DHCP server assigns IP addresses to all workstations on your LAN.
This product is made in ISO9001 approved factory. AWR-654GR Wireless Broadband Router complies with FCC part15 regulations and CE approval.
Features
- Maximum transfer rate up to 85 Mbps from WAN to LAN, 100 Mbps LAN to LAN and 11/54 Mbps through wireless channel enables High-speed access to ISP or corporate network
- Friendly GUI Configuration and Management software
- Supports IEEE 802.3 full duplex flow controlBuilt-in DHCP server automatically assigns IP address to all workstations on your LAN
- 802.11b/802.11g provides WEP Encryption and SSID functions for security purpose
- Supports MAC filter, Client filter, URL and IP filter blocking and Hacker pattern detectionl
- Supports ALGs (Microsoft NetMeeting, MSN Messenger, Windows Media Player, DirectX 8.0, PPTP pass through, IPSec pass through, FTP, ICMP, SMTP, POP3, DNS, Telnet, HTTP, HTTPS, H.323, SIP, Real Audio, CuSeeMe, AOL, and Games)
