Security
| Firewall security |
NAT |
| VPN support |
IPSec, PPTP, L2TP |
| System event log |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, DNS, DDNS, NAPT, PPPoE, PPTP |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Other features
| xDSL connection |
N |
| Bandwidth |
2.4 GHz |
| Networking features |
Fast Ethernet |
| Input voltage |
12 V |
| Frequency range |
2.4GHz |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
URL/IP |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

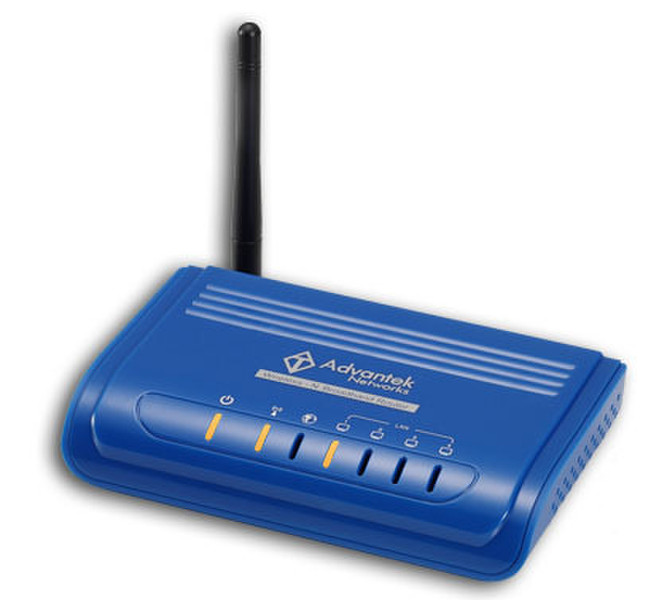

AWR-RT-11NR, Fast Ethernet, 1 x Ant, 2.4GHz, 802.11b/g/n, 150Mb/s, 4 x LAN, 1 x WAN, NAT, NAPT, DHCP, VPN, QoS, MDI/MID-X, DC 12V, 152.1g, Blue
Wireless-N Broadband Router/Access Point
Advantek Networks AWR-RT-11NR is a wireless 802.11n draft 2.0 compliant Wireless Broadband Router that provides faster and farther range than 802.11g while remaining backward compatible with 802.11g and 802.11b devices. This router uses advanced broadband router chipset and wireless LAN chipset solution that lets you enjoy high-speed Wired and Wireless connection. Simply connect this device to a Cable or DSL modem and then you can share your high-speed Internet access with multiple PCs at your home with or without wires. It creates a secure Wired and Wireless network for you to share photos, files, video, music, printer and network storage. AWR-RT-11NR supports WEP, WPA, WPA2, WPS, 802.1x high-level WLAN security features that guarantee the best security for users.
This product is made in our ISO9001 approved factory and complies with FCC part 15 regulations and CE approval.
Features:
- Maximum transfer rate up to 150 Mbps in a 2.4GHz frequency;
- Backward compatible with IEEE 802.11b/g;
- Built-in 4 port 10/100 Ethernet switch with auto speed sensing;
- Supports NAT, NAPT, DHCP Server/Client;
- Supports VPN pass through - IPSec, PPTP, L2TP;
- Supports Virtual Server / Port Trigger / Port Forward;
- Supports Virtual DMZ Host, DNS Proxy, DDNS, UPnP;
- Supports 64/128-bit WEP Data Encryption;
- Supports WPA / WPA2 / WPS / 802.1x Authentication;
- Supports WDS (Wireless Distribution System) mode;
- Supports Quality of Service (QoS) – WMM;
- Supports MAC Filter, Client Filter, URL/IP Filter;
- Supports Hacker Pattern Detection;
- Supports Auto-crossover (MDI/MID-X) function;
- Supports software upgrade through Web;
- Friendly web-based GUI Configuration and Management.
