Performance
| Modulation |
256-QAM, OFDM, DSSS |
| 2.4 GHz |
Y |
| Spread spectrum method |
DSSS |
| 5 GHz |
Y |
| Throughput |
HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Design
| Internal |
N |
| Cable lock slot |
Kensington |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
100 - 240 V |
Antenna
| Antennas quantity |
6 |
| Detachable antenna(s) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Transfer rate (Mbps) |
1300 Mbit/s |
2.4 - 5.950 GHz, UL 2043, white, USB 2.0, 802.11 a/b/g/n/ac

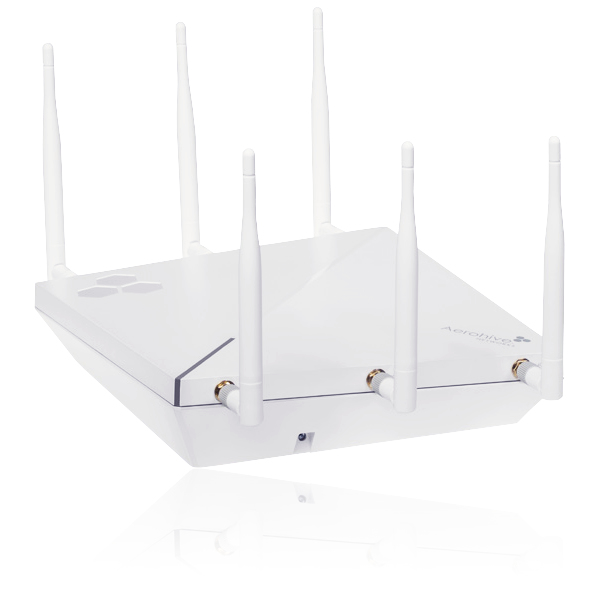

The AP390 is an enterprise-grade, high performance two radio (3x3) three stream MIMO 802.11ac/n Access Point, targeted at high capacity office and warehouse environments with extended temperature range and external antenna options for focused coverage.
The AP390 is where high-performance 802.11ac meets the simplicity of Aerohive’s distributed, cooperative architecture. This power optimized access point line uniquely incorporates next generation 802.11ac, smoothly integrates into your existing 802.3af or 802.3at power and network infrastructure, and provides all the redundancy and power efficiency to set the stage for a future Wi-Fi technologies at the access layer.
<b>Hardware Platform</b>
- Two radios provide concurrent 802.11a/n/ac and 802.11b/g/n connections with no degradation in performance
- Automatic or dedicated mesh backup
- Dual Gigabit Ethernet ports with link aggregation and failover for extra redundancy
- Plenum Rated APs for indoor, office environments
- Hardware acceleration for IPsec services
<b>Security Features</b>
- Trusted Platform Module (TPM)–Hardware-based key storage and encryption
- Wireless privacy & authentication Wi-Fi CERTIFIED WPA and WPA2, 802.11i, WEP, 802.1x, PSK
- Granular user profile-based management defines QoS, mobility policies, and security policies for each user that enters the network
- Encryption: AES:CCMP, TKIP, and RC4 (WEP only)
<b>Advanced Features</b>
- Integrated application visibility and control
- On-Device RADIUS Server with directory support, Captive Web Portal, VPN Server, and DHCP server
