Antenna
| Detachable antenna(s) |
N |
| Antenna type |
Internal |
Other features
| USB version |
2.0 |
| USB ports quantity |
1 |
| xDSL connection |
N |
| Frequency band |
2.4 GHz |
| Rack mounting |
N |
| Mobile network connection |
N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Modulation |
QPSK, DQPSK, CCK, BPSK, 64-QAM, 16-QAM |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Full duplex |
Y |
Protocols
| DHCP server |
N |
| DHCP client |
N |
Power
| Power over Ethernet (PoE) |
N |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

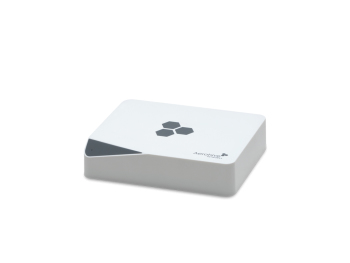

BR100, 4xFE, 1xWAN, 1 radio 802.11b/g/n, configurable regulatory domain, with power supply
<b>The Aerohive BR100 packs “work anywhere” mobility, enterprise routing, and security into one compact device.</b>
Administrators need only set up a single configuration for remote devices via the familiar HiveManager interface; when the BR100 branch router is plugged in, it discovers the HiveManager automatically, and configuration is pushed to it. The BR100 enables administrators to run a thousand remote office VPNs as easily as a single location.
In addition to 802.11n WiFi, the BR100 supports multiple SSIDs and VLANs shared across wired and wireless interfaces, which can be configured in a number of ways to handle any small office/teleworker requirements. One SSID can be dedicated for employee access using 802.1X, for example, while another is used for guest access where devices are using a pre-shared key. Four 10/100 LAN ports are also configurable and can share a VLAN with a wireless SSID, as well as be protected by a Captive Web Portal or 802.1X.
The BR100 can be provisioned in several different ways, for maximum convenience and cost effectiveness. Organizations may choose to purchase the BR100 outright, and deploy/manage the devices as usual. Or the BR100 can be enabled via the innovative Branch on Demand. This subscription includes the BR100 support and a subscription to Aerohive’s HiveManager Online, for the ultimate in flexibility.
Since most of the traffic generated at branch or remote locations is destined for the Internet, Aerohive’s patent-pending Cloud Proxy automatically diverts that traffic through a cloud-based web security service, vastly reducing bandwidth costs by eliminating the need to route branch, remote office or mobile-user traffic back to a central location for filtering.
<b>Layer 3 IPSec VPN</b>
- Enables remote users to connect authenticated devices to corporate resources
- Eliminates the need for IPSec or SSL VPN software on each device
<b>Wired/Wireless Access and Control</b>
- Single centralized management console guarantees identical security, identity, and network access policy across wireless or wired ports
<b>Cloud Proxy</b>
- Patent-pending Cloud Proxy automatically diverts Internet-bound HTTP traffic through cloud-based web security service
- Reduces bandwidth cost
<b>Network Flow-based Stateful Firewall</b>
- Enforces policy at the network level via a combination of user identity and very granular mobile device management.
- Access based on who they are and the type of device that they are using.
<b>Network-as-a-Service Offering</b>
- One year subscription enables flexible deployment of branch routers without CAPEX
