Display
| Vertical scan range |
48 - 85 Hz |
| HD type |
Full HD |
| Display type |
LED |
Ports & interfaces
| PC Audio in |
Y |
| DVI port |
Y |
| DVI-I ports quantity |
1 |
| Audio (L,R) out |
1 |
| HDMI in |
1 |
| RS-232C |
Y |
| USB port |
N |
| RS-232 interface |
Y |
| HDMI ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| VGA (D-Sub) input ports |
1 |
| DisplayPorts quantity |
1 |
| Composite video in |
1 |
| DVI-D ports quantity |
1 |
Performance
| Multi-display supported |
N |
| Number of slots |
1 |
| TV tuner integrated |
N |
Audio
| Audio system |
stereo |
| Number of speakers |
2 |
Packaging data
| Handheld remote control |
Y |
| Batteries included |
Y |
Additionally
| Display scan frequency (horizontal) |
31 - 92 kHz |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Energy efficiency compliance |
B |

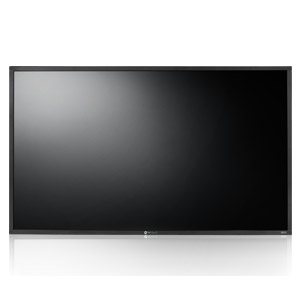

139.7 cm (55 ") (140cm) MVA LED, FHD 1920x1080, 16:9, 700cd/m², 6.5ms, 1.07B, 2x 10W RMS, VGA, DVI-D, DVI-I, HDMI, Component, CVBS, DP, RJ45, RS-232, 245W, 30.6kg, Black
Built on an LED-backlit panel with the capacity of 700 nits high brightness, the PS-55 reproduces life-like colours and image details without disturbance of ambient light. Designed to suit different environments, it can be displayed either landscape or portrait. Equipped with an OPS slot and RJ45/RS-232 remote control functions, the PS-55 is an ideal choice for easy media integration and maintenance. The Anti-Burn- in™ technology and HeatControl Sensor ensure the 24/7 round-the-clock performance in professional digital signage settings.
- LED-backlit technology with FHD 1920 x 1080 resolution
- 700 nits high brightness
- Premium-grade panel for high reliability and long product lifetime
- Anti-Burn-in™ technology
- AIP technology: 3D Comb Filter/ Deinterlace/ Noise Reduction/PIP and PBP
- Versatile connectivity: VGA, DVI, HDMI, CVBS, YPbPr, DisplayPort
- Daisy chain availability: VGA, DVI, RS-232
- RS-232 and RJ45 allow programmable remote control
- 15.8 mm bezel width and tiling function for easy video wall setup (support up to 5 x 5)
- Built-in scheduler allows different programme scheduling
- HeatControl Sensor automatically activates the internal cooling fan to cool down the temperature
- OPS slot ready for easy media player integration
- Built-in speakers
- Quick switch between internal and external speakers
- Flexible display orientation: portrait and landscape
- Rigorous screening of the components for mission-critical 24/7 applications
Slim Bezel And Depth
The PS-55 featuring a 15.8 mm slim bezel enhances viewing experience and frees up more space in digital signage environments with a depth of 69 mm.
Tiling Function
Built-in tiling function allows easy image setting in a video wall matrix (supports up to 5 x 5).
Built-in Scheduler
Built-in scheduler automatically activates/deactivates the PS-55 with designated input signal according to programmed schedules.
OPS Slot
Coming with the OPS slot, the PS-55 is easy to integrate with media player or mini PC.
700 Nits High Brightness
The PS-55 fitted with the 10-bit and 700 nits high brightness VA panel brings premium image quality without interference of ambient light.
VGA And DVI Daisy-chain
VGA and DVI loop through function makes video wall installation easy and quick.
RS-232 And RJ45 Remote Control
RS-232 and RJ45 allow users to remotely control one or multiple displays.
HeatControl Sensor
HeatControl Sensor detects the display temperature and automatically activates the internal cooling fans to cool down or shut down the display for long product life time.
Landscape/Portrait Display Orientation
Flexible display orientations suit preferred content layouts.
