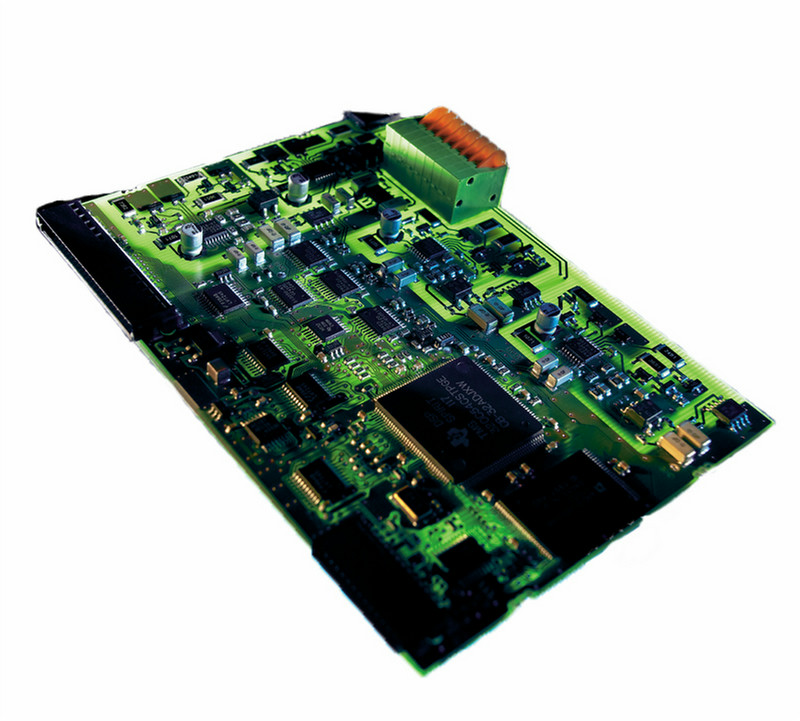

AGFEO AL-Modul 4504

AL-Modul 4504 Sophisticated digital technology for the connection of Analogue Trunk Lines
Technical Information:
- Connection for up to 4 Analogue Trunk Lines
- CLIP to FSK standard
- CLIP to DTMF standard
- Upgradable Firmware for exchange line adjustment
- Maximum 4 modules per system
- AS 4000 only install in master cabinet
- Remote maintenance of system and modules via ISDN line or Internet with required module.
- Call Cost evaluation not possible on Analogue Trunk Lines
- Mixed Trunk mode with analogue, ISDN and or Internet telephony is possible
- Will only operate if the AS 40P, AS 4000 and AS 100 IT are fitted with the P 400-1 or P 400–IT respectively
- CLIP to analogue extensions will only be supported on this telephone system if the T Module 407 is fitted
- AL Module 4504 will NOT replace the connection module.
