Performance
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Frequency band |
5.1 - 5.8 GHz |
Other features
| Operating temperature (T-T) |
4 - 158 °F |
| Networking features |
Fast Ethernet |
| Wireless technology |
802.11 a/n |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Power
| Power over Ethernet (PoE) |
Y |
Antenna
| Antenna gain level (max) |
22 dBi |
Additionally
| Transfer rate (Mbps) |
150 Mbit/s |
| AC adapter bundled |
Y |

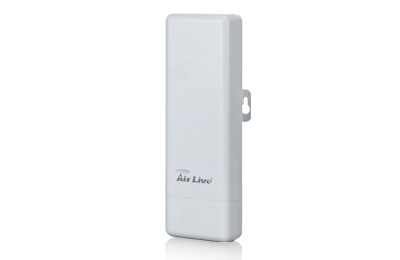

802.11a/n 1T1R Wireless Outdoor CPE
The AirLive AirMax5N-ESD is the new generation of all-in-one wireless 5GHz CPE built to the highest standard. It greatly surpasses the competitions in value, feature, performance, and reliability. If you are looking for a cost effectively way to build your wireless outdoor network that can withstand the test of time. Look no further, AirMax5N-ESD is the first choice.
<b>Simple All-In-One Solution</b>
The AirMax5N-ESD comes with almost everything you need to build 5GHz outdoor connection instantly. The CPE enclosure is built with high grade anti-UV materials for protection from prolonged sunshine and rain. It includes an integrated 16dBi 5GHz antenna with vertical or diversity polarization. The internal PCBA slides out for easy maintenance. The built-in advanced passive Power over Ethernet is for the deployment of the PoE network environment.
<b>Long Distance</b>
With the integrated directional antenna and high performance 150Mbps 11n radio, the AirMax5N-ESD can reach long distance using the built-in antenna. AirMax5N-ESD is also equipped with R-SMA connecter. You simply connect a hi-gain external antenna to the R-SMA port. You can choose the CPE to use Vertical, Horizontal, or external antennas from the web interface. It really is that versatile and simple.
<b>Maximum Performance</b>
Despite of its compact size, the AirMax5N-ESD is packed with full performance hardware and software. The long distance radio provide longer distance and better signal than the competition.
<b>Multiple Operation Modes</b>
The AirMax5N-ESD can function as an AP, Repeater, WDS, WDS+AP, Client Infrastructure, WISP Router or AP Router. Therefore, you can instantly transform the CPE to different wireless applications.
With the new AirLogic interface, the web configuration is much more user friendly than before. You simply start by selecting a wireless mode, the AirMax5N-ESD will display only options available in that wireless mode. No more guessing and experimenting.
<b>Bandwidth Management</b>
The AirMax5N-ESD provides the capability to control total connection or per user's bandwidth. Therefore, the WISP operators can offer different class of connection speeds for different subscription fees – just like the ADSL service!
<b>Easy Configuration</b>
The AirMax5N-ESD is built for easy configuration and installation. It is a product without compromises with AirLive's legendary reliability. What more could you ask for? Buy one for your network today.
