Power
| Number of power supply units |
1 |
| Input current |
1 A |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
10GBASE-T, 10BASE-T |
Other features
| Power LED |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Power supply type |
AC/DC |
Design
| Form factor |
19U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

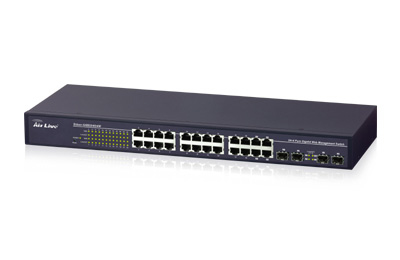

24+4 Pure Gigabit Web Managed Switch
With the introduction of the Ether-GSH2404W, AirLive has developed the ideal solution for mid-large enterprise, campus, internet cafe and FTTH solution. The Ether-GSH2404W support plug & play simplicity with high performance and reliability, With 24 Gigabit Copper ports plus 4 combo SFP(Mini-
GBIC) Fiber slots.
4 combo SFP (Mini-GBIC) Fiber slots
The AirLive Ether-GSH2404W is a 24-Port 10/100/1000BASE-T Web Managed Switch with 4 combo ports supporting SFP transceivers. The SFP transceivers can support 1000Base LX/SX Mini-GBIC fiber module. The 4 combo ports are port 21~ port24. For example: when you use the RJ-45 port21, then the SFP slot port21 will not available to use, and vice versa.
High Performance Wire-Speed Architecture
The Ether-GSH2404W delivers superior performance on 48Gbps switching capacity and full duplex wire-speed forwarding; this is an ideal solution for the most demanding bandwidth intensive applications. With support for 8,000 MAC addresses, the Ether-GSH2404W can be used as a costeffective Gigabit solution or a high performance backbone aggregation device.
Tag Based VLAN
Unlike ordinary web management switch that has only rudimentary port settings function. The Ether-GSH2404W equipped with some very useful and advance management features. Tag based VLAN allow administrators to configure VLAN groups across different switches. Private VID function is supported to allow switches to write tag information into the packet. Defining complex VLAN function across the entire network becomes much easier.
Rate Control, Trunking, Broadcast Storm filter
The rate control allows limiting the speed of each port form 128kbyte to 3968kbps (32 levels). This is very useful for internet café or FTTH operator, the broadcast storm control prevents one single station flood the network with broadcast packet.
Port Trunk with LACP
Port based Trunking allow combining several ports to multiply the speed of one link. The Ether- 2404W support up to 24 ports or 8 groups for trunking. The priority allows each port have 4 priority queues. The Static MAC address table function allows MIS to manually entering MAC address in a certain port. Finally port mirror is provided to allow MIS to sniff the packet of each port for diagnostic purpose.
Remote Management and fi rmware upgrade via Web Browser
The Ether-GSH2404W allows user to configure the switch or firmware upgrade through local LAN or over the Internet form web browser.
