Display
| Sync-on-green (SOG) |
Y |
| Separate H/V sync |
Y |
| Display diagonal |
15.6 " |
| Aspect ratio |
16:9 |
| Digital vertical frequency |
56 - 75 Hz |
| Touchscreen technology |
Capacitive |
| Digital horizontal frequency |
31.47 - 60.02 kHz |
| Response time |
8 ms |
| Composite sync |
Y |
| Contrast ratio (typical) |
500:1 |
| Display resolution |
1366 x 768 pixels |
| Viewing angle, horizontal |
180 ° |
| Viewing angle, vertical |
130 ° |
| Display viewable area HxV |
344.232 x 193.536 mm |
| Display brightness |
250 cd/m² |
| Display type |
LCD |
Weight & dimensions
| Dimensions (W x D x H) with stand |
431.8 x 219 x 390.9 mm |
| Weight with stand |
5400 g |
Performance
| Number of speakers |
2 |
| Number of simultaneous touchpoints (Windows 7) |
2 |
| Mean time between failures (MTBF) |
50000 h |
| Plug and Play |
Y |
| RMS rated power |
2 W |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Y |
Operational conditions
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Ergonomics
| VESA mounting interfaces |
100 x 100 mm |
| Wall mountable |
Y |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Other features
| On Screen Display (OSD) |
Y |
Additionally
| Display number of colors |
16.78 million colours |
| Operating temperature range (T-T) |
0 - 40 °C |
39.624 cm (15.6 ") TFT, PCT Touch, 16:9, 1366 x 768, 8ms, 500:1, VGA, 2 x 1W, 5.4kg
15.6", 1366 x 768 WXGA, Multi-Touch Widescreen Monitor with PCT Touchscreen and VGA Port
Features
- Fully-integrated, easy-to-use, plug-and-play multi-touch desktop device
- Two independent touch points (with Windows 7 operating system)
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- Responds to a light touch in activating response
- Easy-to-clean surface without bezels
- TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 agency approvals

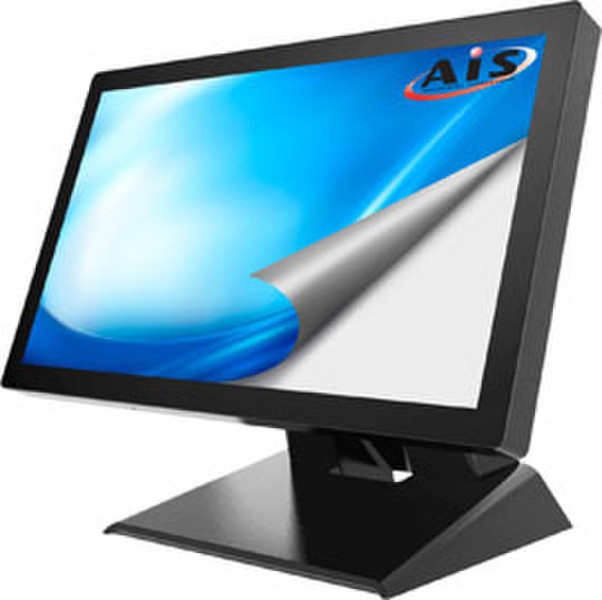

The AIS 15.6" PCT multi-touch widescreen monitor is a fully-integrated‚ off-the-shelf unit (COTS) that combines high-performance Projected Capacitive Touch Technology (PCT or PCAP), in an industrial-grade LCD flat panel, with a sleek and flat front surface industrial design. This PCAP technology is a capacitance system that delivers sensitive and accurate two-touch interactive experience. AIS industrial widescreen multi-touch flat panel displays are specifically suited for use in information kiosks, self-service kiosk systems, medical healthcare, as well as interactive digital signage applications.
