Other features
| Air pressure |
3.13 mmH2O |
| Airflow |
71.7m3/h |
| Fan performance |
41.96 cfm |
| Rotational speed |
2200 RPM |
Power
| Rated current |
0.21 A |
| Voltage |
12 V |
Performance
| Noise level (high speed) |
21.12 dB |
| Type |
Fan |
| Suitable for |
Chipset |
| Fan diameter |
95 mm |
| Supported processor sockets |
LGA 1156 (Socket H) |

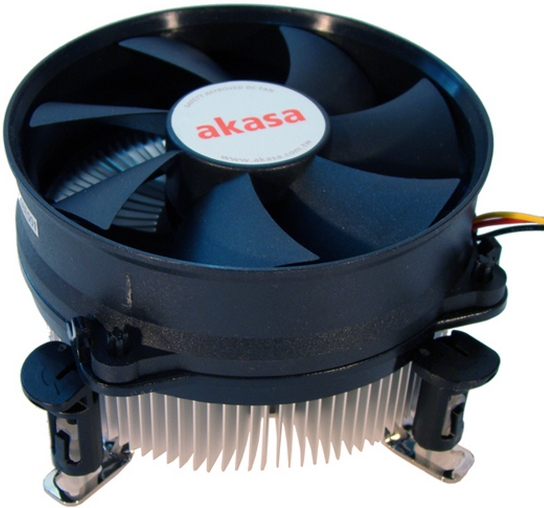

OEM CPU cooler, 95mm, Intel Core 2 Duo, Core i3 & Core i5; Intel LGA775, LGA1155 & LGA1156; 2200RPM, 41.96CFM (71.1m³/h), 3.13mm-H2O, 21.12dB(A), 0.21A, 12VDC, 3-pin, 292.3g
AK-CC7108ES01 is a new design OEM CPU cooler combining low noise, efficient cooling with great value. High engineered omni directional aluminium heatsink with bi-ped fins maximize heat dissipation and provides optimal CPU and motherboard VRM cooling. Low speed fan with 3-pin connector provides constant airflow while keeping the system quiet.
Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position.
AK-CC7108ES01 is designed to work with CPU’s up to 75W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.
- High engineered aluminium heatsink for cost effective cooling performance.
- Bi-ped fins maximise heat dissipation.
- Intel approved push pins provide reliable retention.
- Intel LGA775 and LGA1156 compatible.
- High performance thermal interface is pre-applied.
- Total height of 58mm from CPU level.
