Features
| Antenna type |
Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) |
< 2.0:1 |
| Antenna connector type |
RP-SMA |
| Polarization |
Vertical polarization |
Performance
| Antenna gain (2.4 GHz) |
4.4 dBi |
| Antenna gain (5 GHz) |
3.3 dBi |
| Antenna gain level (max) |
4.4 dBi |
| Frequency band |
2.4 - 2.5 / 4.9 - 5.9 GHz |
| Impedance |
50 Ω |
2.4-2.5/4.9-5.9GHz, 50ohms, RP-SMA, 2 W, set of 3

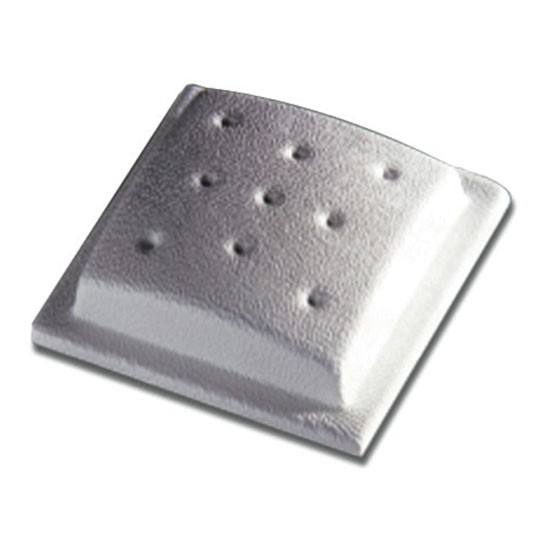

AP-ANT-13B antenna offers characteristics that are only normally seen in much larger antennas, offering ”no compromise” coverage ideally suited for high-density AP deployments. The AP-ANT-13B antenna features a discrete, small package that easily blends into the office environment and its well-defined coverage area ensures excellent system-wide in-building performance in high-density, high-capacity environments. Ideal for conference rooms, dense cubicle deployments.
The AP-ANT-13B is available as a single antenna or a multipack three antenna kit, the AP-ANT-13B-KIT. An array of three AP-ANT-13Bs can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage, or the AP-ANT-13B single antenna can be used individually or in combination to provide diversity/nondiversity coverage with legacy 802.11a/b/g access points.
