Antenna
| Antenna type |
2x2 MIMO |
| Antenna gain level (max) |
4 dBi |
Other features
| Wireless technology |
Wi-Fi |
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
Performance
| 5 GHz |
Y |
| Ethernet LAN data rates |
100, 1000 Mbit/s |
| Modulation |
16-QAM, CCK, 64-QAM, BPSK, QPSK |
| 2.4 GHz |
Y |
| Frequency band |
2.4 - 5.85 GHz |
Ports & interfaces
| WAN connection |
Wi-Fi |
| DC-in jack |
Y |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1000 Mbit/s |
802.11a/b/g/n, 2.4 GHz - 2.5 GHz + 5 GHz, 100/1000Base-T

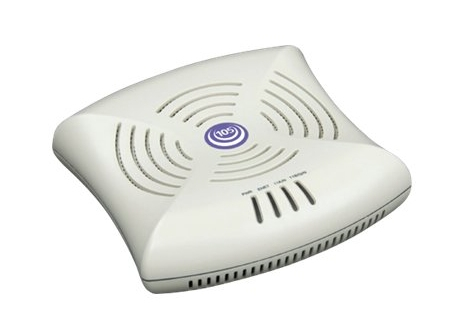

<b>The Alcatel-Lucent OmniAccess</b>
™
AP105 is a high-performance, multi-band (concurrent 802.11b/g/n and 802.11a/n) dual-radio indoor wireless access point capable of delivering wireless data rates of up to 300 Mb/s per radio. As a multi-function access point, it provides wireless LAN access, air monitoring, and wireless intrusion detection and prevention over the 2.4 GHz to 2.5 GHz and 5 GHz RF spectrum. This access point works in conjunction with Alcatel-Lucent OmniAccess WLAN switches to deliver high-speed, secure network services.
The OmniAccess AP105 delivers 802.11n speeds and high-end wireless services at a price close to that for the 802.11a/b/g access points. The access point also offers a limited lifetime warranty. With the IEEE 802.11n standard ratified, the OmniAccess AP105 makes the choice between a/b/g and a/b/g/n easy: a/b/g/n should be the technology of choice for new WLAN deployments.
