Data transmission
MAC address table |
8000 entries |
Store-and-forward |
Y |
Supported data transfer rates |
10/100/1000 Mbps |
Switching capacity |
12.8 Gbit/s |
Maximum data transfer rate |
1 Gbit/s |
Number of VLANs |
255 |
Other features
Authentication method |
RADIUS, TACACS+ |
Connectivity LEDs |
Y |
Management platform |
CLI, Telnet |
Input frequency |
60 Hz |
Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Networking
Port mirroring |
Y |
Broadcast storm control |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
DHCP client |
Y |
Full duplex |
Y |
Performance
Noise level |
30 dB |
Stackable |
Y |
Ports & interfaces
SFP/SFP+ slots quantity |
2 |
Combo SFP ports quantity |
2 |
Basic switching RJ-45 Ethernet ports quantity |
12 |
Gigabit Ethernet (copper) ports quantity |
2 |
Management features
Quality of Service (QoS) support |
Y |
Power
Input voltage |
100 - 240 V |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Additionally
Wireless technologies |
Wired |

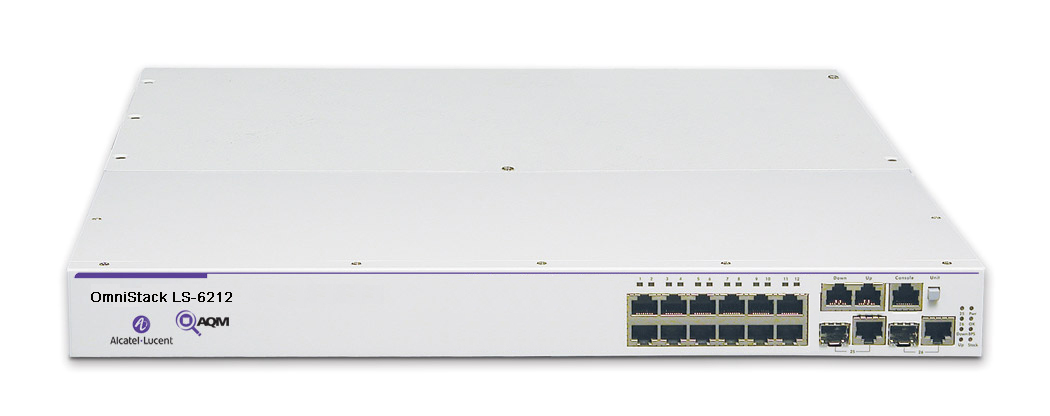

OmniStack 6212, 12x10/100, 2x10/100/1000 BaseT, 2x1000BaseT/X
Fast Ethernet L2+ stackable fixed configuration chassis in a 1U form factor consisting of 12 10/100 RJ-45 ports, two 10/100/1000 RJ-45 ports and two combo ports. Combo ports consist of two additional 10/100/1000 RJ-45 and two mini-GBIC ports. MiniGBIC ports support Gigabit Ethernet MiniGBIC (SFP) optical transceivers, which can be ordered separately. Stacking capability utilizes the two 10/100/1000 RJ-45 ports and standard Ethernet cabling. Optional backup power supported. Optional items can be purchased/ordered separately. Comes with user manuals on CD-ROM, 19" rack mounts, RJ-45 to DB-9 adapter, and country specific power cord.
