Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
104 Gbit/s |
| Number of VLANs |
4000 |
| Number of queues |
8 |
| Latency (1 Gbps) |
4 µs |
| Number of multicast groups filtered |
1000 |
Operational conditions
| Heat dissipation |
2661 BTU/h |
Networking
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| DHCP client |
Y |
| Flow control support |
Y |
| DHCP server |
Y |
| Auto-sensing |
Y |
| 10G support |
N |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
780 W |
| Power over Ethernet (PoE) ports quantity |
48 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
48 |
Protocols
| Management protocols |
SNMP, Telnet, HTTP/HTTPS, SSH |
| Supported network protocols |
IPv4, IPv6 |
Design
| Ventilation fan(s) |
4 |
| Form factor |
1U |
| Rack mounting |
Y |
Security
| Access Control List (ACL) |
Y |

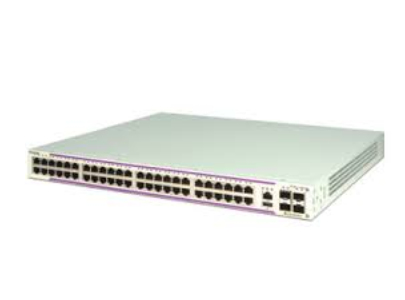

48 x 10/100/1000 RJ-45, 4 x Gigabit SFP, 104 Gb/s, PoE
The Alcatel-Lucent OmniSwitch 6350 family is a series of fixed-configuration managed Gigabit Ethernet switches available in 24 to 48 port, non-PoE and PoE models to create the exact network for your small business.
The OmniSwitch 6350 provides network capabilities including advanced security, quality of service and high availability features for your business-class data, voice and wireless technologies. These switches are simple to deploy, configure and manage.
All OmniSwitch 6350 switches use the field-proven Alcatel-Lucent Operating System (AOS) to deliver highly available, secure, self-protective, easily managed, and eco-friendly networks.
The Alcatel-Lucent OmniSwitch 6350 family is embedded with the latest technology innovations and offers maximum investment protection.
