Management features
| Multicast support |
Y |
| Web-based management |
Y |
| ARP inspection |
Y |
| Traffic shaping |
Y |
| Quality of Service (QoS) support |
Y |
Networking
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| IP routing |
Y |
| Protocol-based VLAN |
Y |
| Private VLAN |
Y |
| Stacked VLAN |
Y |
| Port mirroring |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Active link detection |
Y |
| Flow control support |
Y |
| DHCP server |
Y |
| Auto-sensing |
Y |
| 10G support |
Y |
| Full duplex |
Y |
Data transmission
| Jumbo frames |
9216 |
| Number of VLANs |
4000 |
| MAC address table |
48000 entries |
| Switching capacity |
68 Gbit/s |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
320 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Compatible memory cards |
Not supported |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| SFP+ module slots quantity |
2 |
| Console port |
USB |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
2 |
Design
| Case design |
Freestanding |
| DIN rail mounting |
Y |
| Wall mountable |
Y |
| Rack mounting |
Y |
Power
| Input voltage |
20 - 60 V |
| Input current |
3.75 - 11.25 A |
| Power consumption (max) |
34 W |
| Output power |
180 W |
Security
| Authentication |
MAC-based authentication |
| SSH/SSL support |
Y |
| Loop protection |
Y |
| BPDU filtering/protection |
Y |
| Access Control List (ACL) |
Y |
Operational conditions
| Heat dissipation |
116 BTU/h |
| Operating altitude |
0 - 3962.4 m |
12 x RJ-45, 2 x SFP, 2 x SFP+, 4 x PoE, 8 x PoE+, 10/100/1000, 1.7 kg, IEEE 802.1D/p/Q/ad/ak/aq/s/w, 802.3 i/x/z/ab/ac/ad/ae/afaz

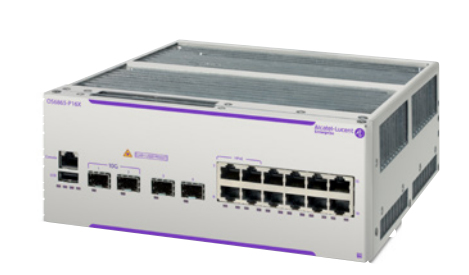

The Alcatel-Lucent OmniSwitch® 6865 series of switches are industrial grade, high-density, advanced Ethernet platforms designed for operating reliably in the harshest of environmental & severe temperature environments.
OS6865 switches are rugged, high bandwidth switches that are ideal for industrial and mission-critical applications that require wider operating temperature ranges, stringent EMC/EMI requirements and an optimized feature set for high
security, reliability, performance and easy management. These switches run on the widely deployed & field-proven AlcatelLucent Operating system offering SPB-M based VPNs and other advanced routing & switching capabilities.
The OS6865 series offers a unique mix of features to cater to the Hardened Ethernet applications such as IEEE 1588v2 PTP capabilities for timing requirements of industrial devices, HPoE (75W PoE) for those power hungry devices on the access network, SPB-M for fast, cost-efficient roll-out of VPN services on the edge and a comprehensive suite of security features
to secure the network edge. These switches are easy to deploy with our award winning Intelligent-Fabric technology which offers out-of-the-box plug-and-play, Zero-touch provisioning and network automation. The OS6865 family offers advanced system & network level resiliency features and convergence through standardized protocols.
These versatile industrial switches are ideal for deployment in transportation and traffic control systems, power
utilities, video surveillance systems and outdoor installations.
The OmniSwitch 6865 offers customers Gigabit fixed-configuration switches with up to 75 watts of PoE per port and power supply options that accommodate the most demanding requirements. The switch can be mounted on DIN rail, wall/panel or a 19-inch rack. It has built-in 10 Gigabit SFP+ ports that support 10 Gigabits and 1000-X, a USB port and a console port.
