Management features
Multicast support |
Y |
MIB support |
MIB-II |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Data transmission
MAC address table |
8000 entries |
Supported data transfer rates |
10/100/1000 Mbps |
Throughput |
9.52 Mpps |
Switching capacity |
12.8 Gbit/s |
Maximum data transfer rate |
1 Gbit/s |
Number of VLANs |
4096 |
Performance
Processor frequency |
400 MHz |
Internal memory |
64 MB |
Flash memory |
16 MB |
Stackable |
N |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
26 |
SFP/SFP+ slots quantity |
2 |
DC-in jack |
Y |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Combo SFP ports quantity |
2 |
Other features
Power supply type |
AC |
Packet transfer speed |
1488000 pps |
Operational conditions
Operating altitude |
0 - 3000 m |
Heat dissipation |
768.3 BTU/h |
Networking
Port mirroring |
Y |
Broadcast storm control |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Link aggregation |
Y |
IP routing |
Y |
10G support |
N |
Full duplex |
Y |
Power
Number of power supply units |
1 |
Input voltage |
100 - 240 V |
Security
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Protocols
Supported network protocols |
Telnet, HTTP, HTML |
Design
Form factor |
1U |
Rack mounting |
Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
Y |
Additionally
Wireless technologies |
Wired |

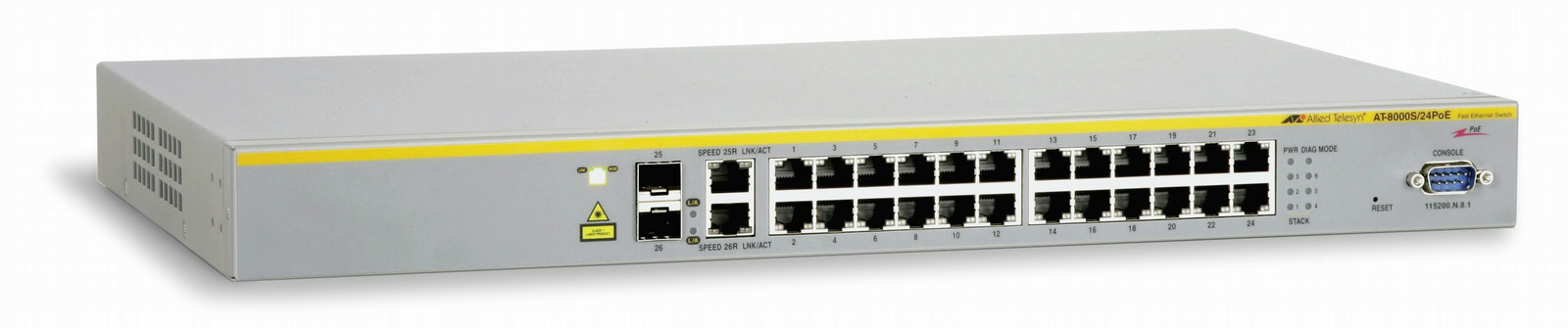

AT-8000S/24PoE - 10/100TX x 24 ports PoE stackable Fast Ethernet switch with 2 combo ports, 1RU, IGMP, Web-based management, SNMP
The 8000S/24PoE is a low-cost managed stackable Fast Ethernet switch with PoE connectivity at the edge for VoIP phones and wireless access points. The 8000S/24PoE has an 1RU form factor, two Gigabit Ethernet SFP combo bays and dedicated stacking interfaces. An extensive set of features such as link aggregation, VLANs and port mirroring can be performed across the stack.
