Data transmission
| MAC address table |
2000 entries |
| Switching capacity |
1 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Packet transfer speed |
148000 pps |
| Networking features |
Ethernet, Fast Ethernet |
| Data transfer rate |
10 Mbit/s |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

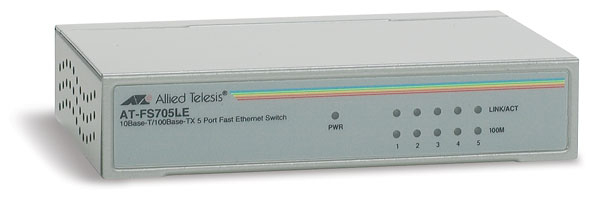

5 port 10/100TX unmanaged switch with external power supply
High Performance
Providing powerful 10/100 switching solutions
for desktop and small network environments,
the Allied Telesis FS700 series of unmanaged
switches features full auto-negotiating 10/100
ports.These ports enable the switches to
detect the speed and duplex modes of attached
devices, enabling them to automatically configure
for the best possible performance.
Flexibility/
Available as 5, 8, 16, or 24 port models, the
FS700 series meets a multitude of power
requirements with both internal and external
power-supply options. Also, wall, desk, and rackmounting
options give users ultimate
flexibility in selecting the model that meets
their physical deployment requirements.
Simplified Installation
Fully auto-configuring FS700 series switches
require minimal set-up by the user. Auto-sensing
ports enable seamless and simple connectivity
between existing 10Mbps Ethernet and 100Mbps
Fast Ethernet UTP devices—and all units can
be installed in minutes. Every FS700 series
model is equipped with MDI/MDI-X ports for
simple connection to other hubs and switches.
Finally, easy to read front panel LEDs show ongoing
switch status and simplify troubleshooting.
Quality and Reliability
Allied Telesis is a worldwide leader in unmanaged
Ethernet switches. Shipping more than 250,000
unmanaged switches each year, Allied Telesis
offers proven reliability and industry recognized
quality.
