Ports & interfaces
| DC-in jack |
Y |
| WAN connection |
Ethernet (RJ-45) |
Power
| Power consumption (max) |
16 W |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
90 - 264 V |
| Input frequency |
50/60 Hz |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Performance
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| 5 GHz |
Y |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| 2.4 GHz |
Y |
Antenna
| Antenna gain level (max) |
4 dBi |
| Integrated antenna |
Y |
Design
| Cable lock slot |
Kensington |
| Internal |
N |
Additionally
| Transfer rate (Mbps) |
1750 Mbit/s |
Indoor IEEE 802.11ac/g/n dual-radio wireless AP with embedded antenna

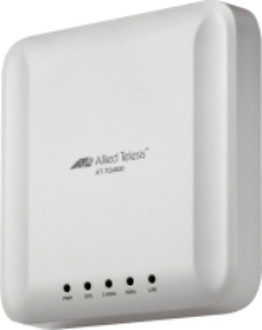

The Allied Telesis AT-TQ4600 Enterprise-class Wireless Access Point features an IEEE 802.11ac 3ss dual-band 2.4/5GHz radio and embedded antenna, capable of 1750Mbps raw wireless capacity.
The AT-TQ4600 is based on IEEE 802.11ac, with three-spatial-stream Multiple Input and Multiple Output (MIMO), which can deliver up to twice the wireless capacity of 802.11n access points.
The AT-TQ4600 may operate either in standalone, AP-cluster, or controlled by UWC controller, and is suitable for a wide range of deployments — from SMBs to large Enterprises.
