Security
| Firewall security |
N/A |
| MAC address filtering |
N |
Other features
| Supported data transfer rates |
54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps |
| Interface |
Wi-Fi |
| Networking features |
Fast Ethernet |
| Input voltage |
12 V |
| Power supply type |
DC |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Channels quantity |
4 channels |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
2 |
Protocols
| Supported network protocols |
IEEE 802.3 CSMA/CD, IEEE 802.3u 100TX, IEEE 802.11b/g/n, IEEE 802.11i, IEEE 802.1x, IEEE 802.11e |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

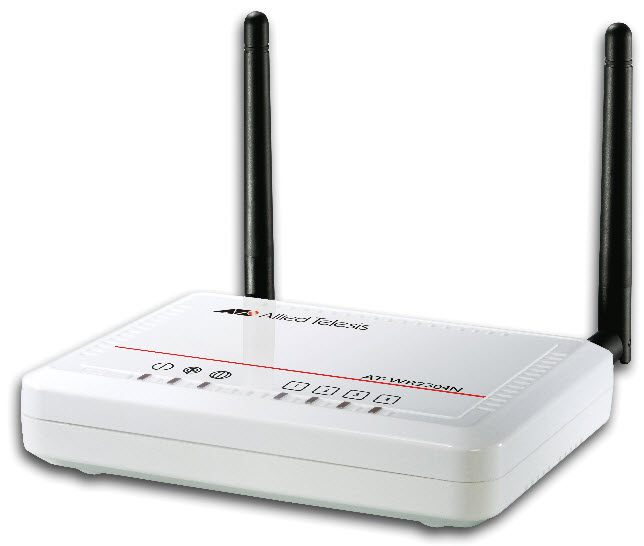

AT-WR2304N IEEE 802.11b/g/n small business wireless router with four Fast Ethernet ports
The Allied Telesis AT-WR2304N is ideal for home networking and small offices. AT-WR2304N is a wireless communications router offering a theoretical 300Mbps wireless throughput among your wireless and wired devices; that allows you the sharing of Internet connections, printers and files among the networked PCs.
