Networking
| Supports ISDN connection |
Y |
| MAC address table |
4096 entries |
| LAN features |
4 x Ethernet 10/100 BaseT |
| Supported WAN type |
- ADSL Annex B RJ11\n- DTAG / U-R2, ETSI 101 388\n- ITU-T G.992.1 (G.dmt)\n- ITU-T G.992.3 ADSL2 (G.dmt.bis)\n- ITU-T G.992.5 ADSL2+ (G.dmt.bis.plus)\n- ANSI T1.413 i2\n- G.994.1 (G.hs) |
Other features
| Voice features |
Voice ~ DSL ELCP, CAS, CCS |
| Maximum data transfer rate |
0.1 Gbit/s |
| Security features |
- IPsec VPN termination\n- Stateful Inspection Firewall\n- Intrusion Detection\n- Denial Of Service protection\n- De-Militarized Zone\n- NAT/NAPT |
| Power supply type |
115-230 VAC, 50 - 60 Hz, 13 W |
DSL features
| Downstream data rate |
24 Mbit/s |
| DSL specification |
ADSL2, ADSL2+, ADSL over ISDN (annex B) |
| xDSL connection type |
ADSL |
Protocols
| Management protocols |
SNMP V1, V2, MIB I, MIB II, TELNET, Dying Gasp, Webserver |
Additionally
| Wireless technologies |
Wired |

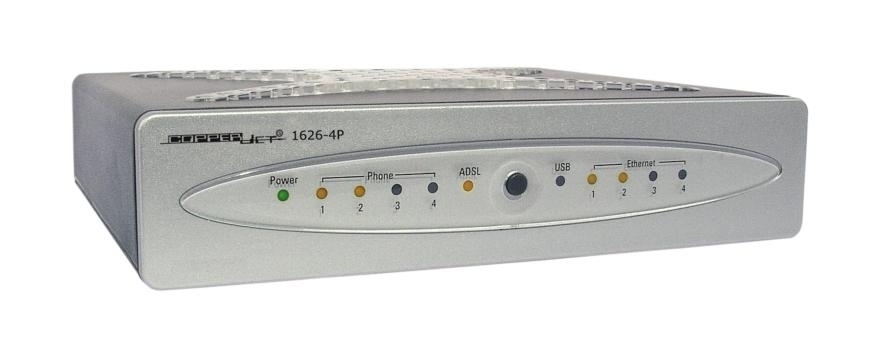

CopperJet 1626: ADSL2+ modem, VoIP (SIP, MGCP), 4 x 10/100 BaseT, 4 x POTS/PSTN FXS
Unique Selling Points (USP):
- Full featured ADSL2/2+ Voice Router and Firewall
- Suitable for ADSL2+, ADSL2, ADSL over ISDN (annex B, U-R2)
- Up to 24 Mbps downstream
- 4 x Ethernet 10/100 BaseT
- 4 x POTS/PSTN FXS
- Supports VoIP (SIP, MGCP)
- Supports Voice over DSL (ELCP, CAS, CCS)
- User friendly webserver interface
- Active Inbound Call Switching
- Upgrade to IPsec VPN
- QuickStart for easy set-up
Product Description:
Delivering ADSL/ADSL2 and ADSL2+ enables service providers to offer connections of 24 Mbps downstream with the CopperJet 1626. Furthermore, ADSL2+ extends the reach of ADSL.
The CopperJet 1626 is an ADSL2+ router that supports both Voice over IP (VoIP) and Voice over ATM (VoATM). It has proven interoperability with several Voice Gateways including, TDSoft, Siemens, Zhone, Alcatel, Broadsoft and IPtel. It supports 4 x POTS/PSTN connections on RJ11 connectors that can be used for telephony (analog phones), fax or PaBX services using its integrated residential exchange functions. Active Inbound Call Switching enables the user to have both his traditional POTS Voice line and the VoDSL line connected to a single POTS telephone (only for VoATM).
It also provides layer 2 Bridging, layer 3 Routing and integrates a full featured firewall for security. Adding IPsec VPN functionality enables the CopperJet 1626 to perform as a full-featured VPN router.
Capable of doing ADSL Annex A/B/U-R2, ADSL2+, the CopperJet 1626 from Allied Data Technologies increase the deployment of ADSL in rural areas. With the integrated VoIP/VoATM and VPN functionality, it combines both data and voice services and fulfils the demand for more bandwidth and services.
