Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of trunks |
8 |
| Jumbo frames |
9600 |
| Number of VLANs |
16 |
Security
| Authentication |
Port-based authentication |
Performance
| Buffer size |
500 KB |
| Firmware upgradeable |
Y |
Networking
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Tagged VLAN |
Y |
| Rate limiting |
Y |
| Full duplex |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
500 W |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-TX |
| Combo SFP ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power
| Power consumption (max) |
30 W |
Design
| Form factor |
19U |
| Rack mounting |
Y |
24-Port 10/100/1000BaseT(X) PoE+ with 4 Combo SFP Open Slots
IEEE 802.3at, up to 30W per port
Maximum 500W power consumption
Web-based Configuration and Management
8K MAC, 802.1Q VLAN, QoS, Link Aggregation, RSTP, IGMP Snooping and IEEE 802.1X
Up to 9K Jumbo Frame
Introduction

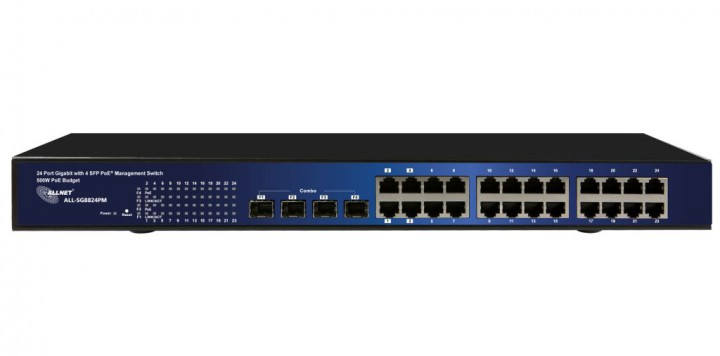

ALL-SG8824PM is 24-port 10/100/1000M PoE+ with 4 Combo SFP Rack-mount Web Smart PoE Switch, the switch supports IEEE 802.3at Power over Ethernet standard, maximum 500W power consumption per system. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, IEEE 802.1X, Storm Control…etc. The switch is standard 19” rack-mount design to fit into the rack environment. With these features, the switch is a superb choice for medium or large network environment to strengthen its network connection and efficiency.
IEEE 802.3at Power over Ethernet (PoE) ports
ALL-SG8824PM features 24 IEEE 802.3at Power over Ethernet (PoE) ports supplying up to 30 watts per port. This product can convert standard 100~240V/AC power into low-voltage DC that runs over existing LAN cable to power up IEEE 802.3at compliant network accessories. It also features PoE awareness to verify whether the network device receive power is IEEE 802.3at compliant, or only the data will be sent through LAN cable. By adding ALL-SG8824PM to existing networking, installing networking products such as Access Points and IP cameras can be easily managed and set up. Wireless device deployments are easily located with available power outlets and network administrators don’t need to use heavy AC power adapters anymore.
4 Combo SFP Open Slots
ALL-SG8824PM supports 4 Combo SFP open slots to uplink to servers, storage, or other switching devices for long loop reach applications.
High-Speed Networking and Jumbo Frames Support
ALL-SG8824PM provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time transferring large files. In addition, it also supports Jumbo Frames 9.6K to improve network utilisation of large file transfers.
Exceptionally Smart
The ALL-SG8824PM features management interface that can be managed through Web Browser and it provides Smart features that are ideal for network applications and basic monitoring tools to improve network efficiency. Through a Web-based interface, an administrator can set up VLANs to segregate traffic, QoS to prioriize mission-critical data, RSTP to avoid network loop, link aggregation to create fat traffic pipelines, bandwidth control to limit traffic load and IEEE 802.1X to secure port access on your network. All of these features offer extra protection on the network edge.
Advanced Security
ALL-SG8824 PM supports specific IP Addresses filtering for every port, and then only identifiers have the privilege to pass through the specific ports. On port access control, the switch also supports IEEE802.1x port authentication.
