Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of trunks |
4 |
| Jumbo frames |
9600 |
| Number of VLANs |
16 |
Security
| Authentication |
Port-based authentication |
| MAC address filtering |
Y |
Performance
| Buffer size |
144 KB |
| Stackable |
N |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Tagged VLAN |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Cable types supported |
Cat5, Cat5e, Cat4 |
| Flow control support |
Y |
| 10G support |
N |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
150 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Power
| Power consumption (max) |
30 W |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP module slots quantity |
2 |
Design
| Form factor |
19U |
| Rack mounting |
Y |

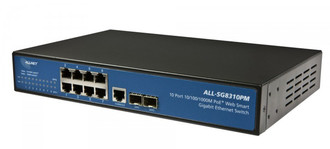

ALL-SG8310PM / smart managed 8 Giga PoE Fanless 2SFP
- 8-Port 10/100/1000 Mbit / s with full PoE support
- 2x SFP slots for optional MiniGBICS
- PoE power 4x a'30 Watts (IEEE802.3at or 8x IEEE802.3af)

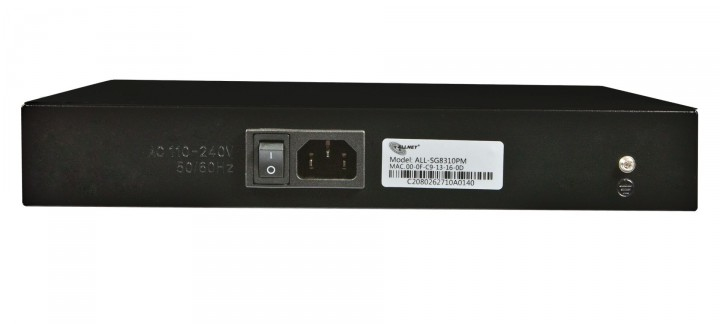

- Fanless design with internal power supply
- Jumbo Frames support and IGMP Snooping
- Link Aggregation and Rapid Spanning Tree
- IEEE802.1q VLAN tagging and 802.1p Priority Queues
- PoE budget 150W
The ALL-SG8310PM is an 8-port 10/100/1000 Mbit / s switch with PoE support on all ports, which is perfectly suited for the segmentation of larger networks. He is an excellent choice to provide your network with greater performance and efficiency.
IEEE 802.3af Power over Ethernet & at (PoE)
The ALL-SG8310PM supports 8 ports Ports PoE IEEE 802.3at standard with up to 30 watts of power per port for the connected PoE devices or 8 ports full power to IEEE802.3af with up to 15.4W. The maximum PoE budget of 150W. Here, the ALL-SG8310PM uses the existing LAN cabling for the power supply. This facilitates installation of PoE devices such as wireless Access Points, IP cameras, VoIP phones and more because no account of power outlets must be taken in the placement. The PoE ON ??/ OFF function allows the administrator to reset the comfortable devices remotely, by switching off the PoE power supply for each individual port.
High-Speed Networking / Jumbo Frames support
The ALL-SG8310PM provides an excellent solution for expanding your Gigabit network. With Gigabit speed, this product offers a high flexibility and high bandwidth for connectivity to servers, workstations and other attached devices. Moreover, it also supports 9.6K jumbo frames to improve network utilization, which greatly improved the transmission of large files.
Extensive administrative / management functions
Modern applications for video surveillance with IP cameras and VoIP are increasingly replacing traditional analogue technologies. This increases the demands on the network infrastructure. The ALLNET ALL-SG8310PM is equipped with many administrative and security features for all modern communication scenarios. IGMP snooping, VLAN Tagged, Qualitiy of Service, Port Trunking, Flow Control, Storm Control, Link Aggregation, IEEE 802.1X authentication, SNMP v1 / v2c and Spanning Tree is just a small excerpt from the extensive portfolio of functions of ALL-SG8310PM.
