Data transmission
MAC address table |
8000 entries |
Store-and-forward |
Y |
Number of trunks |
8 |
Jumbo frames |
9600 |
Packet forwarding rate (1 Gbps) |
1488000 pps |
Packet forwarding rate (10 Mbps) |
14880 pps |
Packet forwarding rate (100 Mbps) |
148800 pps |
Number of queues |
8 |
Networking
Port mirroring |
Y |
VLAN support |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Tagged VLAN |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Port-based VLAN |
Y |
10G support |
N |
Ports & interfaces
Combo SFP ports quantity |
16 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
16 |
Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
SFP module slots quantity |
2 |
Management features
Web-based management |
Y |
Quality of Service (QoS) support |
Y |
Design
Form factor |
19U |
Rack mounting |
Y |
Performance
Stackable |
N |
Packet buffer memory |
500 MB |
Security
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Power
Power consumption (max) |
20 W |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
16 x RJ-45, 16 x combo, 19'', 2 x SFP, IEEE 802.3/802.3u/802.3ab/802.3x/802.1x/802.1Q/802.1ad/802.1d/802.1w/802.1p, 8 K MAC, 440 x 220 x 44 mm, 3 kg

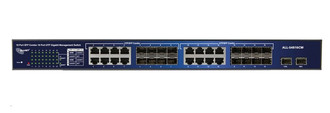

ALL-S4816CW is 16 Combo UTP/SFP ports +2 SFP ports Rack-mount Gigabit Web Smart Ethernet Switch that is designed for medium or large network environment to
strengthen its network connection. Including rack-mount brackets, the 19" size fits into your rack environment. It is a superb choice to boost your network with better
performance and efficiency.
16 Combo SFP Open Slots
ALL-S4816CW supports 16 Combo SFP open slots to uplink to servers, storage, or other switching devices for long loop reach applications.
High-Speed Networking and Jumbo Frames Support
ALL-S4816CW provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers,
workstations and other attached devices.
It enables you to save time transferring large files. In addition, it also supports Jumbo Frames 9.6K to improve network utilization of large file transfers.
Exceptionally Smart
ALL-S4816CW provides Smart features that are ideal for simple QoS/CoS applications and basic monitoring tools to improve network efficiency. Its security and
management features, such as bandwidth control, and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN) to secure your network. Through a Web-based interface,
an administrator can set up VLANs to segregate traffic, QoS to prioritize mission-critical data and link aggregation to create fat traffic pipelines. In addition, ALL-S4816CW
also supports Rapid Spanning Tree to detect and break unintentional cabling loops within the network. All of these features offer extra protection on the network edge.
Best of all, the password-protected configuration interface can be accessed remotely.
Advanced Security
ALL-S4816CW supports specific MAC Addresses filtering for every port, and then only identifiers have the privilege to pass through the specific ports.
On security, it also supports IEEE802.1x port authentication.
Enterprise-Class Web Management Utility
With graphic user interface, it’s easy to manage, plan and configure ALL-S4816CW Rack-mount Gigabit Web Smart Ethernet Switch.
