Data transmission
| MAC address table |
4000 entries |
| Throughput |
14.88 Mpps |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
36 W |
| Power over Ethernet (PoE) ports quantity |
1 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power
| Power consumption (max) |
36 W |

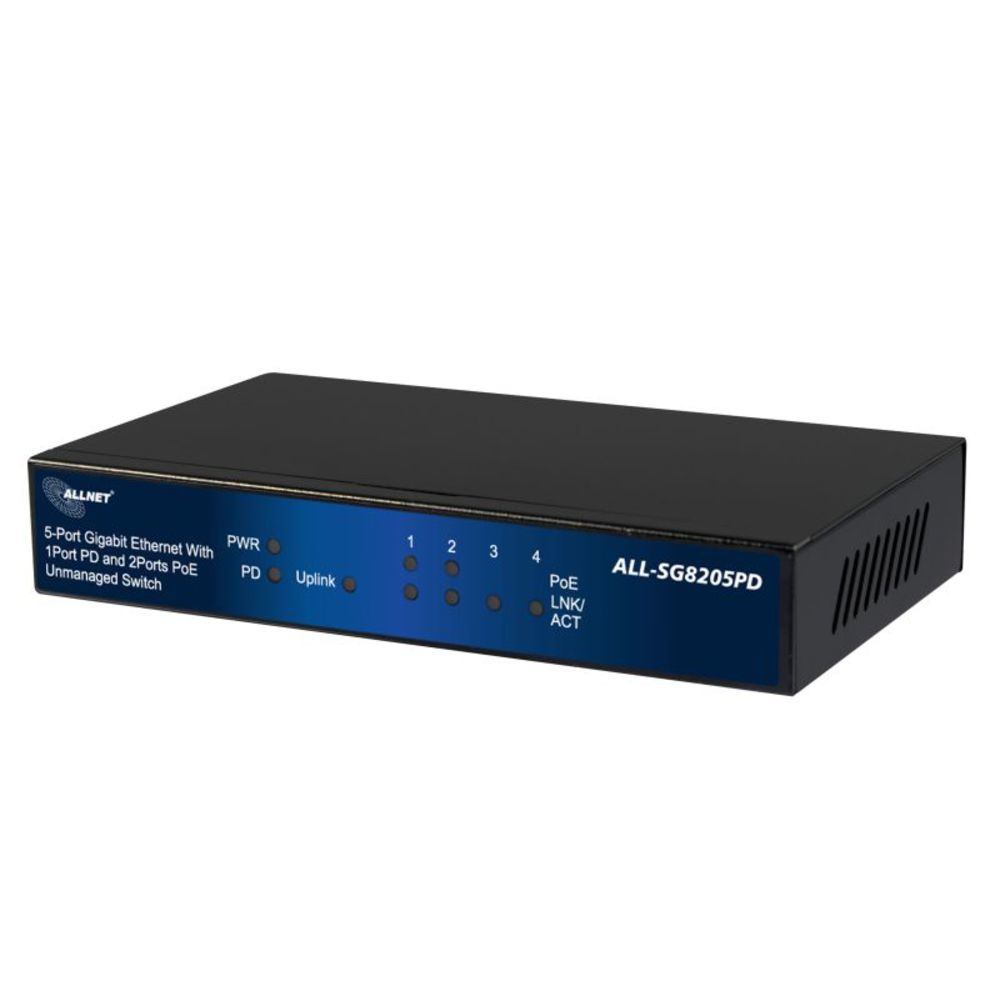

5-port 10/100/1000M PoE Ethernet Switch with 2-port PoE and 1-port PD
- 5-Port 10/100/1000BaseT(X) with 2 PSE Port and 1 PD Port
- Compliant with 2x IEEE 802.3af PSE and IEEE802.3at PD Input
- Metal case with Palm, Size
- NO power supply needed when powered over PD Port
- FANLESS DESIGN
The device is a powerful, high-performance Gigabit Ethernet Switch, with all 5 ports capable of 10/100/1000Mbps auto-negotiation operation (NWay), which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and
imaging applications. Moreover, the 10/100/1000Mbps auto-sensing ability provides an easy way to migrate 10/100Mbps to 1000Mbps network with no pain.
This switch supports PoE pass-through, having both PD (Powered Device) and PSE (Power Sourcing Equipment) features in one single device, which means the switch could get power from the PD port by connecting to a PSE device and supply power on the 2 PSE ports for connected devices via CAT 5e or better twisted cables. By integrating the data transmitting cable and power cord, it eliminates the effort constructing your network. You could easily connect a Wireless AP or a VoIP phone (PD devices) to this switch without looking outlets for them. Over current protection and circuit shorting protection are also supported to ensure the safety.
The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LED indicators on the front-panel provide the operating status of individual port and whole system.
