Networking
| Modem speed |
900000 Kbit/s |
| Network address translation (NAT) |
Y |
| Auto MDI/MDI-X |
Y |
| Internal modem |
Y |
| Frequency range |
2.4 - 5 GHz |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| Gigabit Ethernet (copper) ports quantity |
4 |
| RJ-11 ports quantity |
1 |
| USB version |
2.0 |
| USB ports quantity |
2 |
| DC-in jack |
Y |
Security
| DoS attack prevention |
Y |
| System event log |
Y |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Mobile networking
| Data network |
Not supported |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

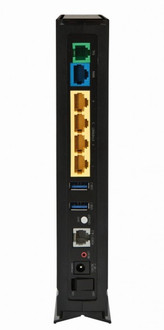

RJ-11, 4 x RJ-45, 2 x USB 2.0, ADSL2/2+, IEEE 802.11 b/g/n/ac, 172 x 219 x 42 mm, 550 g

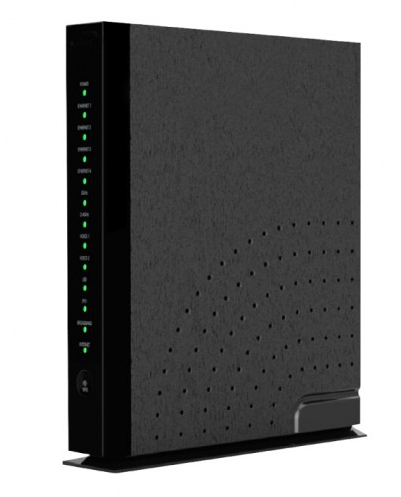

The ALL-WR0500AC ALLNET brings first a modem router on the market, both for ADSL, ADSL2 + and VDSL2 broadband connections is suitable. An external modem is superfluous here.
By supporting VDSL2 + / ADSL2 + technology, the speed advantage of modern high-speed connections can be exploited perfectly and achieve download speeds of up to 100Mbit/s depending on the provider. In addition, the router also achieved thanks to the latest WirelessAC technology transfer rates of up to 900 Mbps, making it perfect for online gaming, IP-TV, HD video, audio streaming and Voice over IP capable. The four antennas contained ensure a long-range transmission of wireless signal. To ensure a comprehensive functionality with maximum flexibility, the router still has four additional LAN ports.
In addition, the router has the latest WPA2 encryption technology, allowing secure data transfer within the network. The integrated SPI firewall with DoS protection, Built-in NAT, MAC, Packet Filtering, and DMZ highest level of security is achieved, which promises additional safety especially for the discerning consumer.
The configuration of the ALL-WR0500AC can be quickly and easily performed via the intuitively designed web interface and thus can be administered across operating systems from any device. At the front of the unit numerous LED for optical signaling of operating conditions are attached.
