Ports & interfaces
| USB ports quantity |
1 |
| USB version |
2.0 |
| Host interface |
USB |
| Internal |
N |
Networking
| Modulation |
CCK, OFDM |
| Frequency band |
2.4 - 5 GHz |
| Chipset |
Ralink RT5572N |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11n |
| Wi-Fi |
Y |
Performance
| Mac operating systems supported |
Y |
Antenna
| Frequency range |
2.4 - 5 GHz |
| Antenna |
Y |
Additionally
| Wireless technologies |
Wireless |
| Transfer rate (Mbps) |
500 Mbit/s |
Wireless N 300Mbit Dual-Band 2,4/5Ghz 2T2, USB 2.0, 12g
Whether as an internal PCI card, USB adapter with external antenna for high performance in hotel rooms, or as extremely small USB pen as a reserve, we offer for every application and requirement both in the home as well as in the business environment, a complete product range in the wireless connect area.

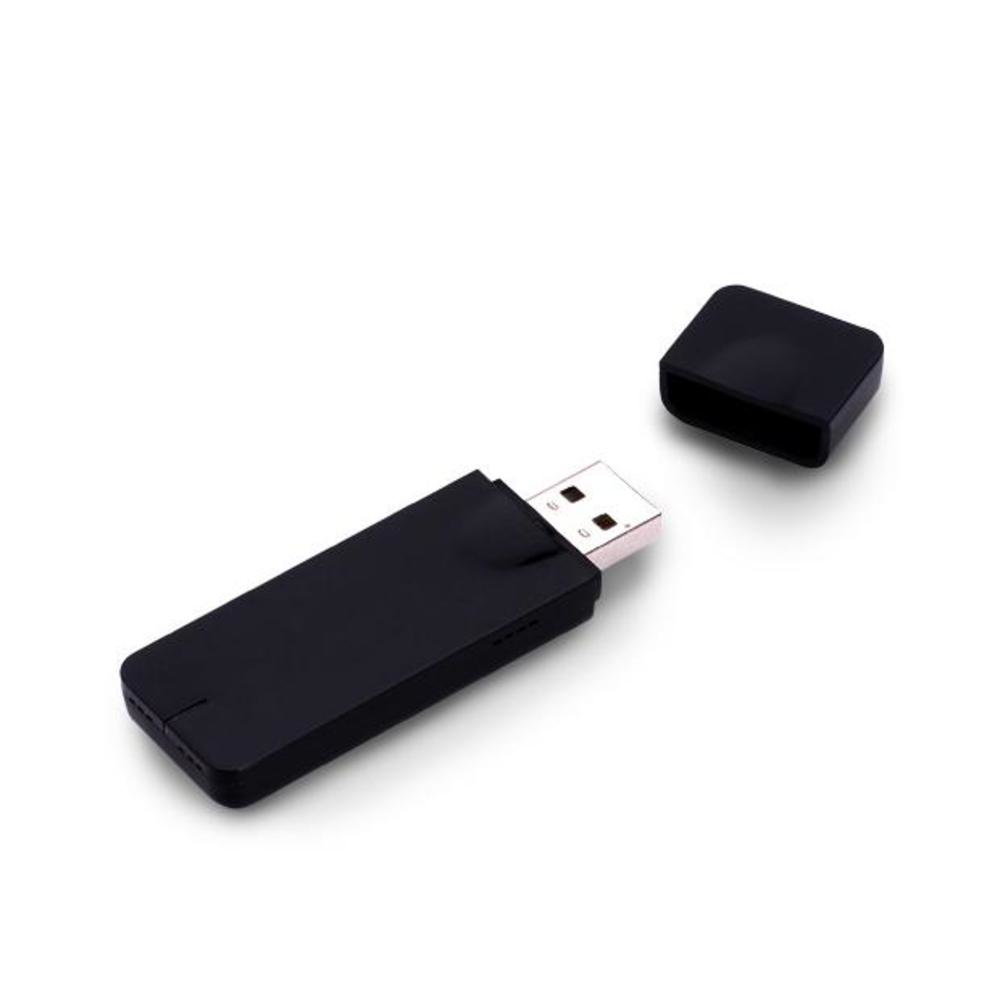

<b>Wireless N 300Mbps Dual Band USB-Mini-Pen Adapter</b>
<b>Highlights:</b>
- USB-Mini-Pen Adapter
- Up to 300Mbps wireless data transfer rate
- 5GHz and 2.4GHz dual band with MIMO wireless technology
- WPS key for quicker &easier connection
- Chipset Ralink RT5572
- slim size
- EN60601-1-2:2007 Certificate for Medicine Environments
The new ALL0233DB USB-Mini-Pen Adapter is suited perfectly to connect your router’s WiFi to an Computer or terminal without WiFi-function. With an transfer rate up to 300 Mbps and it’s MIMO antennas data can be transmitted and received on a frequency of 2.4 and 5 GHz.
Due to an integrated WPS function a quicker and easier connection between the ALL0233DB and your computer can be achieved.
The USB-Pen is compatible with Mac OS 10.X, Ubuntu Linux and the current Windows versions.
Another great feature the ALL0233DB possesses is a fast and easy installation: Your computer will find the USB-Pen automatically and starts searching for current WiFi networks.
After the driver is being installed, the computer connetcts with your router’s WiFi.
Thus, equipment without WiFi function can be integrated wirelessly into the WiFi network.
