Data transmission
| MAC address table |
8000 entries |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
135 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Console port |
RJ-45 |

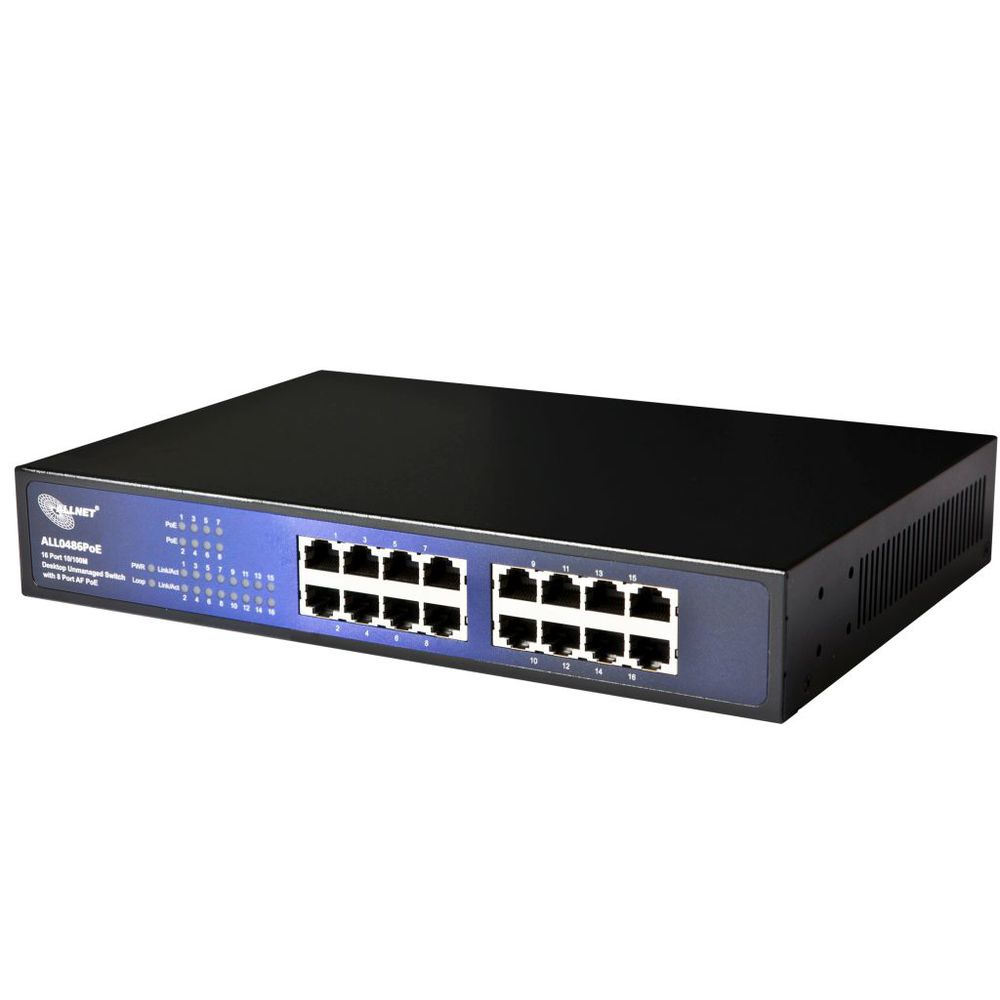

16 Port 10/100Mbps Switch with 8 Port PoE, Fanless
- 16-Port 10/100Mbps - Layer 2 Fast Ethernet
- Full PoE support for 1~8 Port
- PoE Power 8x 15.4 Watts (IEEE802.3af)
- internal power supply
- fanless design
- 19? Brackets including
The ALL0486POE is an 16-port 10/100Mbps Switch with 8-port PoE support , which makes it perfectly suited for the segmentation of larger networks. It is an excellent choice to supply your network with better performance and efficiency.
IEEE 802.3af Power over Ethernet (PoE)

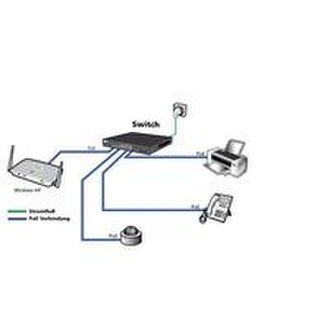

The ALL0486POE supports the IEEE 802.3af PoE standard on 1~8 port, with up to 15 watts for the connected PoE devices. This facilitates the installation of PoE devices such as wireless access points, IP cameras, VoIP phones, because these devices can now be placed without any consideration of existing power outlets.
High-Speed Networking and Jumbo Frames support
The ALL0486POE offers an excellent solution for expanding your network. This product offers a high flexibility and high bandwidth for connectivity to servers, workstations, and other connected devices. In addition, it also supports 9.6K Jumbo Frames for better network utilization, enabling the improved transmission of large files.
Absolutely silent
PoE switches are often equipped with noisy fans that are intended to ensure adequate cooling. Not so the ALL0486POE - the passively cooled, fanless design ensures a completely silent operation.
