Power
| Input voltage |
44 - 57 V |
| AC adapter input voltage |
100 - 240 V |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Power over Ethernet (PoE) |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
Power over Ethernet Injektor AT++ 90W, 2x RJ45 10/100/1000Mbps, 280g
With Power over Ethernet (PoE) it is possible to supply ending devices via network cable not only with data but also with power. This means that you do not only save a power supply, it is now possible to install the ending devices at places with no power sockets. PoE holds a big savings potential.
The ALLNET LT PoE products support the IEEE802.3af standard with a performance of 15.4 watts, the IEEE802.3at standard with 30 watts and the LT PoE standard with 90 watts performance.
The ALLNET product series recognizes active PoE end devices automatically and supplies them wit PoE depending on the capacity requirement.
Due to the combination of switch/injector, repeater and splitter it is possible to enable distances of more than 500 meters. Not PoE capable devices can still be supplied with up to 25V power after this distance. With the CAT6 cables it is therefore achievable to transport performances up to 90 watts via PoE.
<b>Highlights:</b>
- support IEEE802.3, IEEE802.3u, IEEE802.ab,IEEE802.3af, IEEE802.3at and LT PoE 90W
- 1 Port 10/100/1000 Base-T (Data) for connection to a switch, and
- 1 Port 10/100/1000 Base-T (Power/Data) for connection to a PoE Device (PD)
- Automatic detection of whether the connected device is PoE capable

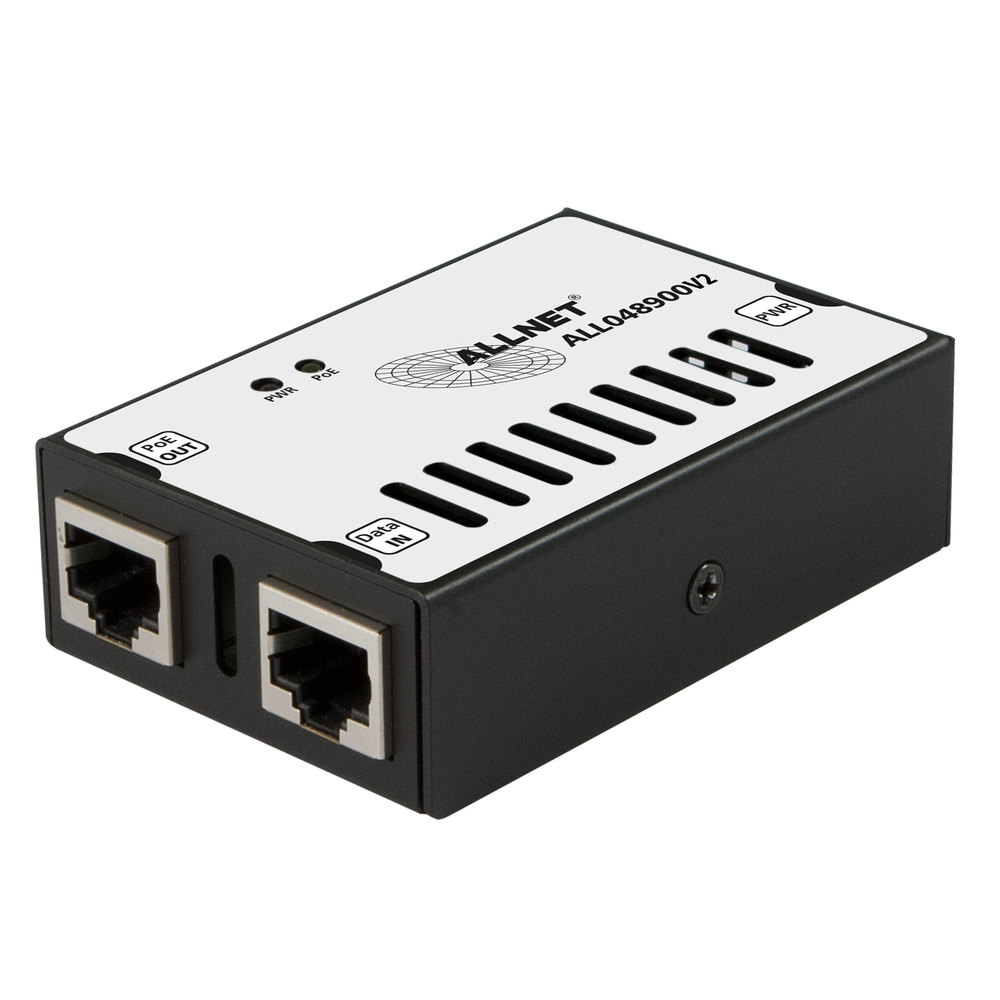

With the ALLNET ALL048900V2 High Power PoE Injector you install your PoE-enabled IP devices such as wireless access points, VoIP phones and much more totally independent of existing electrical outlets.
So you can choose the best locations for example WLAN access points installations in a building regarding the wireless technology, without having to worry about power cabling.
Non-PoE switches can be efficiently „upgraded“ with Power over Ethernet, especially when you only need a few ports with PoE power supply. Here the ALL048900V2 saves the expensive purchase of a PoE switch.
The ALLNET ALL048900V2 supports the IEEE802.3af standard with a power of 15,4 Watt, the IEEE802.3at high power standard with 30 Watt and the LT PoE with 90 Watt power.
The ALL048900V2 must not be configured. It has an RJ45 jack and an RJ-45 output connector, which are connected to this switch and the end device to the PoE injector. The cable length can here, as usual in Ethernet, up to 100 meters between the switch and terminal in total.
The compact design and the metal case of the ALLNET ALL048900V2 can be very inconspicuous installed and is extremely robust.
