Data transmission
| MAC address table |
8000 entries |
| Number of VLANs |
24 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Console port |
RS-232 |
| SFP module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
24 |
Performance
| Packet buffer memory |
0.5 MB |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Networking
| 10G support |
N |
| Full duplex |
Y |
IEEE802.3, 802.3u, 802.3x, 802.3ab/z 802.1q, 24 10/100/1000 Mbps RJ-45, SFP, RS-232
- 24 fixed 10/100/1000Mbps Gigabit Ethernet ports for easy network connecting application
- Equips 4 SFP ports for optional fiber connection
- Supports port aggregation up to 12 groups, max 8 ports per group
- Supports QoS function, port base, tag base, DSCP priority
- Provides 8K MAC address entries and 24 groups VLAN table

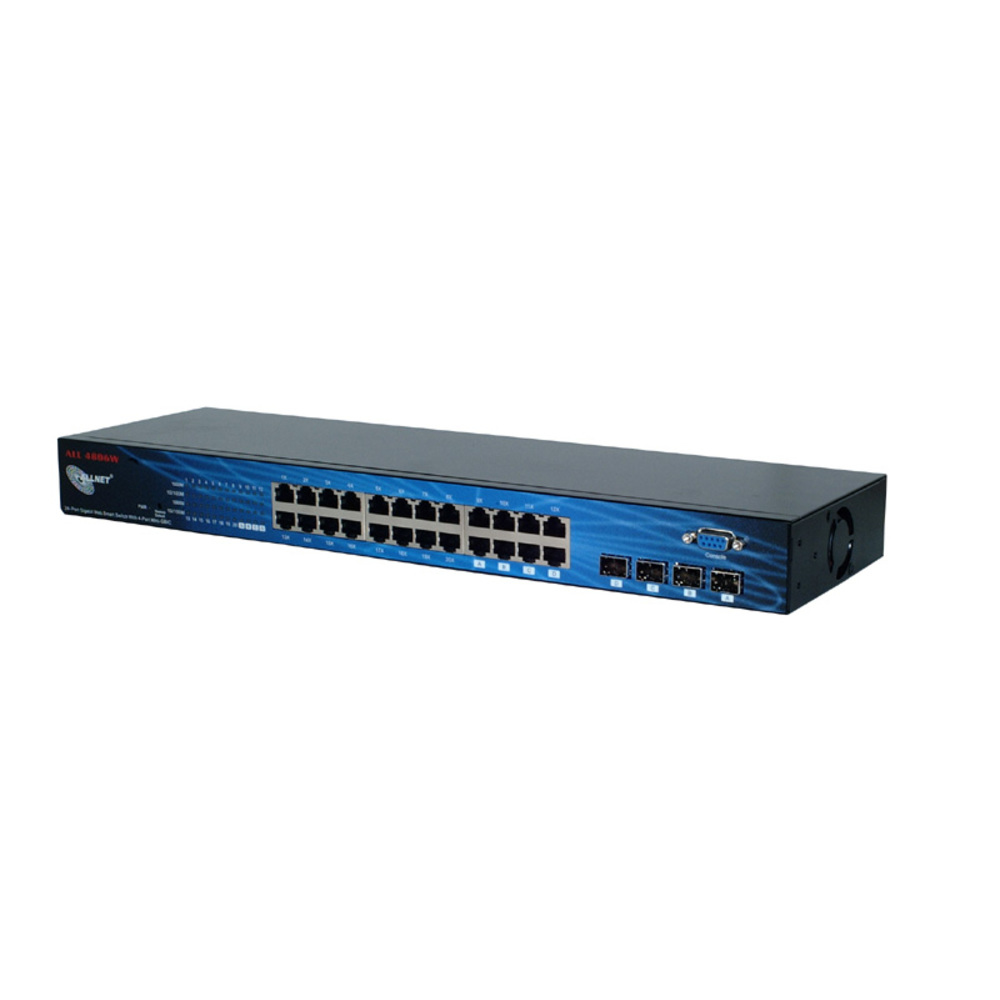

Easyily boosting your networking throughput, the ALL4806W 24-Ports Gigabit Web Smart Switch provides you 24 10/100/1000Mbps gigabit ports that lead you to a real gigabit connection. Users are now able to transfer high bandwidth-demanded files faster and get a real efficiency improvement with the user-friendly Web-based management interface. This product also equips 4 mini GBIC slots for your flexible fiber connection. Use of the mini-GBIC port disables the connection of its corresponding copper port automatically.
The management functionalities provide efficient network usage. VLAN reduces the collisions from widely broadcasting. Port Aggregation enlarges the bandwidth of backbone connection. QoS is supported to secure the bandwidth for some bandwidth-demanded applications including VoIP or videoconference. The 802.3x and backpressure flow control mechanisms are also supported to ensure the correctness of data transmitting.
