Power
| Input voltage |
5 V |
| Input current |
2 A |
Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Throughput |
23.8 Mpps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
16 |
Performance
| Packet buffer memory |
0.256 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Networking
| 10G support |
N |
| Full duplex |
Y |
IEEE802.3/u/ab/az/x, 16 10/100/1000Mbps RJ-45, 32 Gbps, 23.8Mpps, 8K MAK

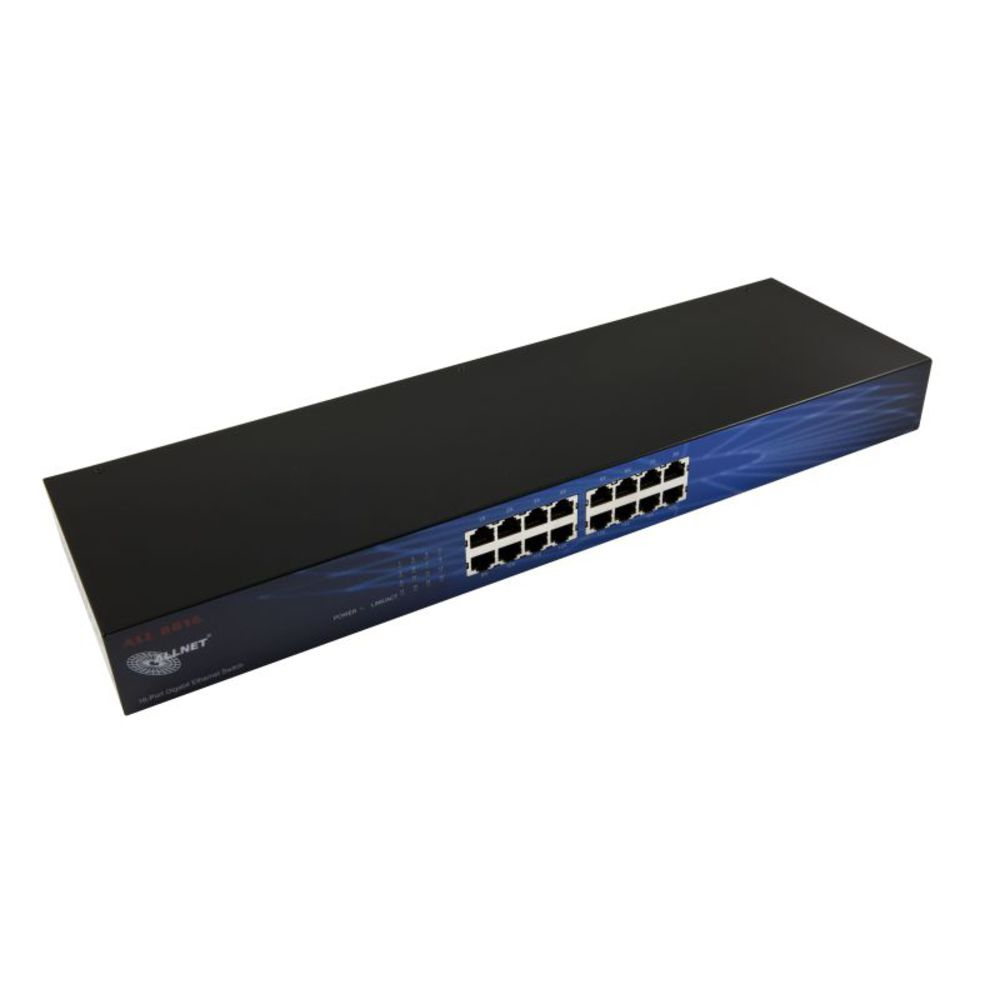

16 Port Gigabit Layer-2 Switch without fan for Desktop and 19" Rack
- 16 Port Gigabit non-blocking switch architecture
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (Half/Full) auto-detection
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
- Store-and-forward architecture filters fragment & CRC error packets
- Supports Green Ethernet: link-down and link-on cable length power saving.
- Supports IEEE 802.3az Energy Efficient Ethernet
Easily boost your network output, this switch provides you 16 10/100/1000 Mbps ports that lead you to a real gigabit connection. Users are now able to transfer large and high bandwidth-needed files faster and hence get a real efficiency improvement.
The store-and-forward architecture filters errors and forwards packets in a non-blocking environment. Flow control and backpressure mechanisms ensure the correctness of data transmitting. The switch is easy to install and maintain. It supports NWay auto-negotiation protocol, which detects the network speed and the duplex modes automatically. Auto-MDI/MDI-X function alleviates the effort to use crossover cables，so users need not to prepare crossover cables for equipment connectivity. Moreover, it supports IEEE 802.3az Energy Efficient Ethernet to promise the operation in Low Power Idle Mode and save power consumption.
