Weight & dimensions
| Radiator depth |
120 mm |
| Radiator height |
27 mm |
| Radiator width |
151 mm |
| Fan diameter |
120 mm |
| Tube length |
330 mm |
| Fan thickness |
25 mm |
Technical details
| Number of fans |
1 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket AM2, Socket FM1 |
-Wasser-, AM3/AM3+/AM2/AM2+/FM1, LGA 2011/1366/1155/1156/775

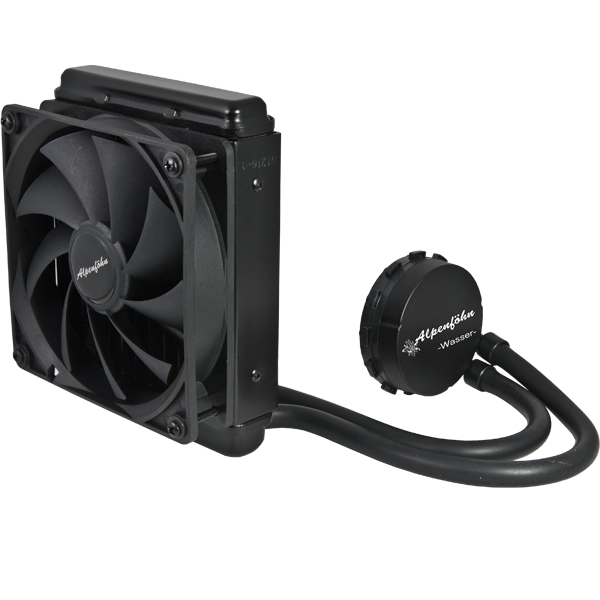

No matter if overclocking or installation in compact cases… With –Wasser- Alpenfoehn offers a high performance
AIO liquid cooling system for any application.The system is prefilled and with no need for maintenance.
In comparison to previously available All-in-One Systems –Wasser- uses the latest Gen.4 copper cold plate
which conducts the heat of the CPU more efficient to the liquid cooling circuit of the system
Features:
- latest Gen.4 copper cold plate for maximum cooling efficiency.
- soft bending tube system for maximized flexibility
- low profile pump for the best liquid circulation
120mm WB-Pure fan:
Thanks to the WingBoost Technology and Hydraulic bearing the 120mm Pure Version of the Wing Boost fan offers a great balance between highest cooling capacity and lowest noise.
The Pure version of the wing boost fan is equipped with a "plus-function". That means that a Y split cable has been attached to the PWM connector for a second fan. Thanks to this split cable it is possible to control additional PWM fan with the same PWM connector on the motherboard.
