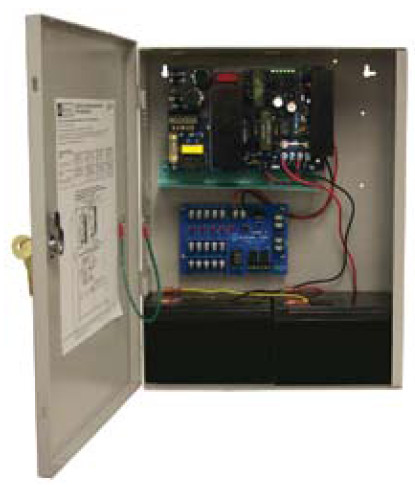

Altronix AL1024ULM 5AC outlet(s) Grey power extension

Multi-Output Power Supply w/Fire Alarm Disconnect, 24VDC, 5 outputs Model AL1024ULM is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an output current of 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications. Model AL1024ULMR is a Red Cabinet version of this product.

Features

Power Supply/Charger:
- 24VDC output.
- 8 amp with 10 amp during alarm supply current.
- 115VAC 60Hz, 4.4 amp input
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type battery backup.
- Maximum charge current .7 amp.
- Zero voltage drop upon transfer to battery backup.
- AC input and DC output LED indicators.
- AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
- Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).

Multi-Output Module:
- Five (5) PTC protected outputs.
- Class 2 Rated power limited outputs.
- Current limit is 12VDC or 24VDC @ 2 amp per output.
- Provides power for Fail Safe and/or Fail Secure locking devices.
- Fire Alarm Panel or Access Control System trigger inputs. NO or NC supervised trigger input and
polarity reversal trigger input (.4 amp draw from FACP).
