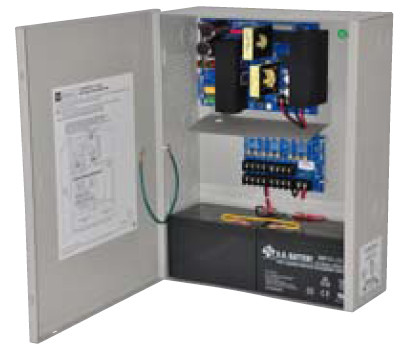

Altronix AL1024ULXPD8CB 8AC outlet(s) Grey power extension

Power Supply/Charger, 24VDC, 8 PTC outputs Model AL1024ULXPD8CB power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via eight (8) PTC protected Class 2 Rated outputs. Model AL1024ULXPD8 is a fuse protected version of this unit.

Features
- 24VDC output.
- 10 amp of continuous supply current for Access Control applications.
- 8 amp of continuous supply current, 10 amp during alarm for Fire Alarm applications.
- Class 2 Rated power limited outputs.
- Eight (8) PTC protected outputs.
- PTCs are rated @ 2.5 amp.
- 115VAC 60Hz, 4.4 amp input.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type battery backup.
- Maximum charge current 3.6 amp.
- Zero voltage drop upon transfer to battery backup.
- AC input and DC output LED indicators.
- AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
- Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
