Altronix AL400ULPD8 8AC outlet(s) Grey power extension

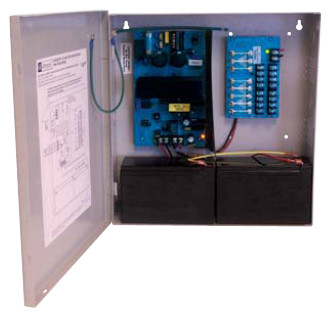

Power Supply/Charger, 12-24 VDC Model AL400ULPD8 power supply/charger converts a 115VAC 60Hz input, to a 4 amp of continuous supply current @ 12VDC or 3 amp of continuous supply current @ 24VDC distributed via eight (8) fuse protected Class 2 Rated power limited outputs. Model AL400ULPD8CB is a PTC protected version of this unit.

- 12VDC or 24VDC selectable output.
- 4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output.
- Class 2 Rated power limited outputs.
- Eight (8) fuse protected outputs.
- Fuses are rated @ 3.5 amp.
- 115VAC 60Hz, 1.45 amp input.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type battery backup.
- Maximum charge current .7 amp.
- Zero voltage drop upon transfer to battery backup.
- AC input and DC output LED indicators.
- AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
- Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
