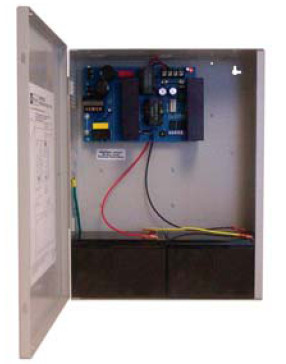

Altronix SMP10PMC24X Grey power extension

Supervised Power Supply/Charger, 24VDC Model SMP10PMC24X power supply/charger converts a 115VAC 50/60Hz input, to a 24VDC @ 10 amp of continuous supply current output. Model SMP10C24X is a non-supervised version of this unit.

- 24VDC output.
- 10 amp of continuous supply current output.
- 115VAC 50/60Hz, 2.7 amp input.
- Filtered and electronically regulated outputs.
- Short circuit and thermal overload protection.
- Built-in charger for sealed lead acid or gel type battery backup.
- Maximum charge current .7 amp.
- Zero voltage drop upon transfer to battery backup.
- AC input and DC output LED indicators.
- AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
- Low battery supervision (form "C" contact rated @ 1 amp 28VDC)
