Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bandwidth (max) |
128 GB/s |
| Memory bus |
256 bit |
| Discrete graphics adapter memory |
2 GB |
Performance
| DirectX version |
11 |
| OpenGL version |
3.2 |
| Shader model version |
5.0 |
| PhysX |
N |
| TV tuner integrated |
N |
| HDCP |
N |
Other features
| HDMI |
N |
| Mac compatibility |
N |
Processor
| Graphics processor family |
AMD |
| CUDA |
N |
| Stream processors |
1440 |
Ports & interfaces
| Interface type |
PCI Express x16 |
| DisplayPorts quantity |
2 |

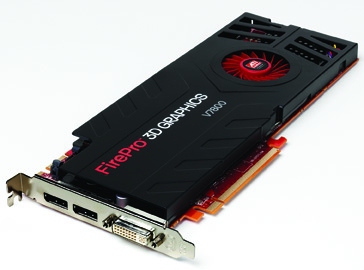

ATI FirePro V7800, 2GB, GDDR5, 2560x1600, PCI-E x16, DirectX 11, OpenGL 3.2
Ultra-fast performance, superb visual quality and massively parallel power
Introducing the ATI FirePro™ V7800 workstations graphics card from AMD. This high-end workstation solution features ATI Eyefinity technology1, 2GB of ultra high speed GDDR5 memory and more than quadruple the computational power of previous-generation products.2 With its large frame buffer and a full 30-bit display pipeline3, the ATI FirePro™ V7800 is ideally suited for users who work on complex models and visual effects and need to meet the requirements of demanding visualization jobs.
Based on a new generation GPU with 1440 stream processors, the ATI FirePro™ V7800 ultra parallel processing architecture helps maximize throughput by automatically directing graphics horsepower where it’s needed. Intelligent management of computational resources enables enhanced utilization of the GPU to enable real-time rendering of complex models and scenes while increasing frame rates when animating.
The ATI FirePro™ V7800 features three independent video outputs4 (two DisplayPort and one dual-link DVI) with ATI Eyefinity technology1, providing improvement to productivity at a much lower acquisition and operating cost than multi-card solutions, while only consuming less than 150W in a single slot form factor. In addition, with native multi-card support, users can see more and do more using up to six displays being driven by two ATI FirePro™ V7800 cards in the same workstation.
ATI FirePro™ professional graphics cards are thoroughly tested and certified with many major Computer Aided Design (CAD) and Digital Content Creation (DCC) applications, ensuring a level of reliability and compatibility not found in consumer graphics products.
Innovation and Reliability from a Technology Leader
Besides the new and ground breaking ATI Eyefinity technology1, ATI FirePro™ cards have been engineered to deliver innovation and reliability for a wide range of professional operating environments, including Microsoft® Windows® 7, Windows® XP, Windows Vista® and Linux®. The unified driver, which supports all ATI FirePro™ products, helps reduce the total cost of ownership by simplifying installation, deployment and maintenance.
In addition, ATI FirePro™ products incorporate a unique AutoDetect technology. As users open new 3D applications, or move between them, ATI FirePro™ graphics driver settings are automatically configured for optimized performance of supported applications, no matter what the user’s workflow demands.
