Amer Networks AMR1APL 26" Clamp Black,Silver flat panel desk mount

Amer Networks AMR1APL 26" Clamp Black,Silver flat panel desk mount

EAN: 650177303178
MPN: AMR1APL
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Mounting

Maximum VESA mount 100 x 100 mm
Minimum VESA mount 75 x 75 mm
Maximum weight capacity 10 kg
Number of displays supported 1

Ergonomics

Height adjustment Y
Swivel angle range -90 - 90 °
Height adjustment range 315 - 106 mm
Tilt angle -20 - 90 °

Additionally

Rotation 360 °

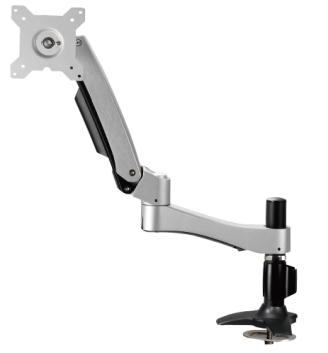

Display Mounts, VESA, max 26", max 10 kg, 2.20 kg This incredibly versatile articulating monitor arm supports up to 26″ monitors with a maximum individual weight of 22.1 lbs. Not only will this strong and sturdy mount have no trouble holding a VESA certified 75×75 or 100×100 monitors, (fitting the above criteria), it is also extremely adjustable!

- 360º rotation, meaning landscape, portrait, or anything in-between. • Tilt and Swivel and Rotation is provided in 5 places ensuring maximum adjustability: - Swivel in the hinge: +/- 90º - Tilt in the hinge: +90º/-20º - Tilt in the arm: +65º/-30º - Rotation about the pole and main arm: 360º • Height adjustable, with a maximum height of 19.63″ (from the desk to the centre of the mounting device) • Extendable with a max horizontal extension of 24.1” from the rear edge.

This mount works with an innovative grommet structure, the best of both the clamp and stand bases. It takes up less space than the stand, has no overhang off the desk like the clamp. It is an excellent solution for your various mounting needs.

Grommet Mounts require the use of the cable management holes on Desk or a hole to be drilled on the desk if no cable management holes are available or located in the desired position.
