Management features
| Multicast support |
Y |
| System event log |
Y |
| Traffic classification |
Y |
| Traffic shaping |
Y |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Jumbo frames |
9 |
| Number of VLANs |
1 |
| Number of multicast groups filtered |
1024 |
| Number of queues |
8 |
Networking
| Private VLAN |
Y |
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Tagged VLAN |
Y |
| Rate limiting |
Y |
| Active link detection |
Y |
| MAC address auto-learning supported |
Y |
| Port-based VLAN |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat5 |
| Broadcast storm control |
Y |
| Link aggregation |
Y |
| Routing entries |
256 |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
N |
| Full duplex |
Y |
Security
| IP-MAC-Port binding |
Y |
| Authentication |
Auto VLAN, Guest VLAN, MAC-based authentication |
| Loop protection |
Y |
| Admin-edge port |
Y |
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) voltage range |
52 - 56 V |
| Total Power over Ethernet (PoE) budget |
130 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Console port |
RJ-45 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
Performance
| Auto-negotiation |
Y |
| Stackable |
Y |
| Firmware upgradeable |
Y |
Packaging data
| Resource CD |
Y |
| Quick start guide |
Y |
Design
| Cable management |
Y |
| Wall mountable |
Y |
| Rack mounting |
Y |
Protocols
| Management protocols |
Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client/DHCPv6 Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support). |

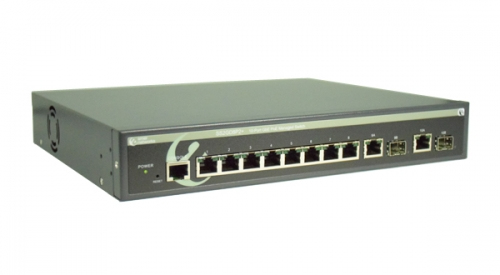

10 PORT 10/100/1000 Mbps PoE+ Switch, 20 Gbps
The SS2GD8P2+ is a 10 port GbE Layer 2 PoE+ Managed Switch. It supports 8 10/100/1000 Mbps Twisted Pair (TP) Ethernet ports with PoE+ support and 2 combo ports that support 10/100/1000Mbps copper twisted pair or 100M/1G Fiber SFP. With a total of 8 ports available to support PoE+ this switch is compliant with 1EEE802.3af and 802.3at PoE standards providing the PoE ports the capability to supply 15.3W or 30W of power with a maximum PoE power budget of 130W. Management Flexibility is also a key with the SS2GD8P2+ with support through console port, SNMP, Command Line Interface (CLI) and a simple and easy to use Web interface that can be accessed through a browser.
