AMX AVB-DAD-RGBHV-HD15-0104

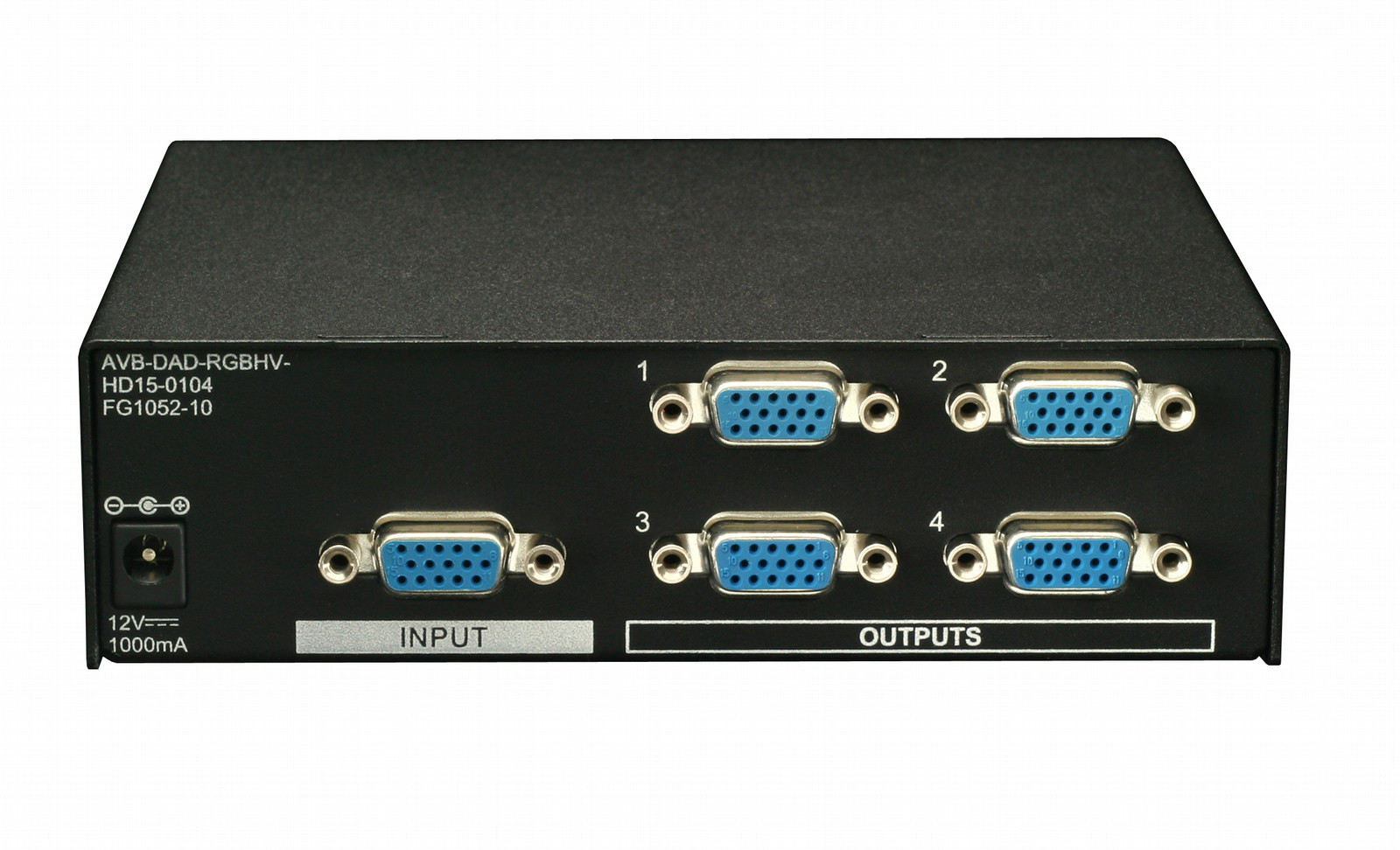

12V, 600 mA, RGBHV, HD-15 The AVB-DAD-RGBHV-HD15-0104 Video Distribution Amplifier Driver (DAD) distributes a single RGBHV signal to multiple destinations without any signal loss up to 250 ft. (76.2m) away. The RGBHV DAD has one input and four outputs on HD-15 connectors. Amplification ensures a true one-to-one ratio is delivered to each destination. Line drivers on each output can be adjusted to compensate for signal loss that occurs over long cable runs.

<b>COMMON APPLICATIONS</b>
The 1:4 RGBHV HD-15 Distribution Amplifier Driver is ideal for sending a single high resolution computer video signal to 4 displays or projectors.

<b>FEATURES</b>
- Distribute RGBHV signals up to 250 ft. (76.2 m)
- Power Supply Energy Star rated to ensure maximum efficiency and savings
- Automatically adjusting universal 110 / 220 IEC power supply is included with every unit
- Inputs: 1
- Outputs: 4
- Video Type: RGBHV
- Connector Style: HD-15
- Space saving V Style (versatile) module design
- Compatible with V Style mounting options including rack, surface or pole
