Ports & interfaces
| BNC output ports |
24 |
| BNC input ports |
16 |
Pre-Engineered Matrix Switchers RGBHV Video with BNC, 16x24 BNC
<b>OVERVIEW</b>
Optima RGBHV with BNC matrix switchers are ideal if you prefer BNC connections over HD-15 for passing high-resolution video. At 300 MHz This robust professional matrix switcher can distribute the highest resolution analog signals on the market while maintaining our ultra-flat ±3 dB frequency response. This means true, pure clean video at every destination, every time.
<b>COMMON APPLICATION</b>
Any place computer or other RGBHV sources are distributed throughout a facility from small boardroom and digital signage aplications to larger command and control operations.
<b>FEATURES</b>
- Ultra-flat video bandpass curve measured at a tight ±3 dB
- 300 MHz bandwidth, fully-loaded worst case scenario
- Easily supports the highest analog video bandwidth requirements on the market
- PureSync™ Technology guarantees the quickest possible rise time of the sync signal's leading edge, eliminating the possibility of video loss at the display
- Superior video crosstalk specifications ensure signal isolation and security
- Standard RS-232 control port
- Supports AutoPatch's simple BCS serial control protocol
- Optional TCP/IP control via external APWeb module

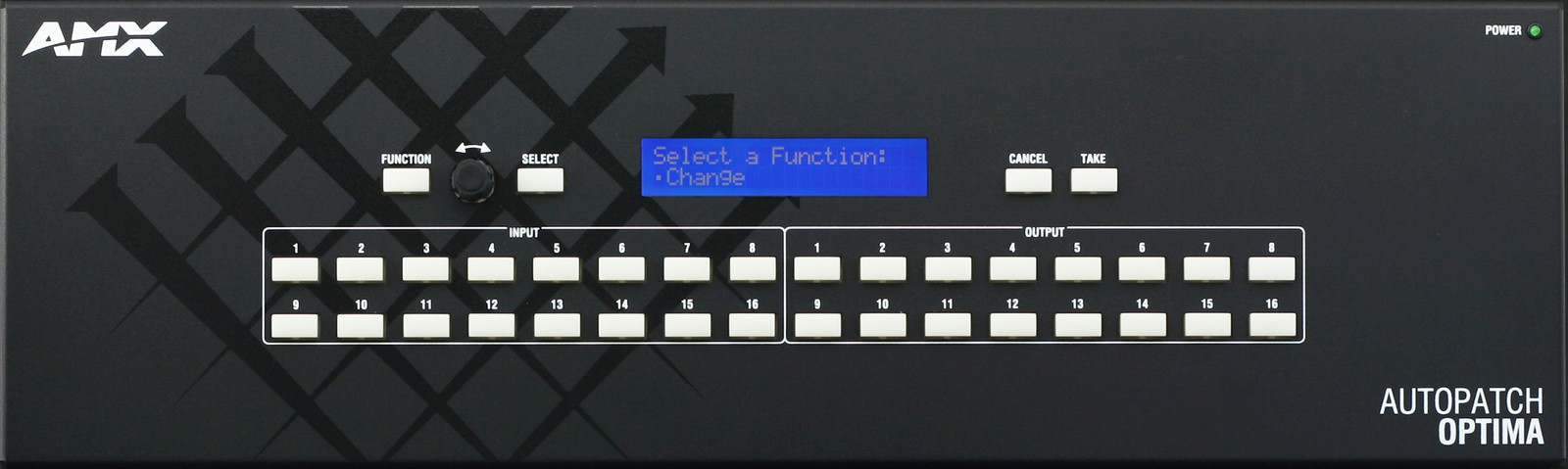

- Includes intuitive CP-15 front mounted control panel featuring LED backlit LCD and blue light buttons, allowing quick and easy access to execute many commands including status, change, disconnect, local presets, global presets, front panel lock and unlock, and more
- Front panel security lockout
- Ships with free AutoPatch matrix switcher configuration software
- Ships with free APControl to provide easy single-user PC control of the matrix switcher
- Includes AutoPatch's remote link for direct connect with AutoPatch remote panels and SBC control pads
- Rack mounting ears included
- Backed by our AMX 3 year warranty
- Local presets allow quick recall of a pre-programmed set of switches with a single command; multiple presets can exist within a system at the same time
- Global presets allow quick recall of a comprehensive snapshot of all switches and digital volume controls
