Technical details
Video port type |
BNC |
HDCP |
N |
Ports & interfaces
BNC input ports |
16 |
DC-in jack |
Y |
BNC output ports |
24 |
AVS-OP-1624-547, 24x16, RGBHV BNC, Stereo 5T, DVC
Optima RGBHV with BNC matrix switchers are ideal if you prefer BNC connections over HD-15 for passing high-resolution video and also require balanced or unbalanced stereo audio. At 300 MHz this robust professional matrix switcher can distribute the highest resolution analog signals on the market while maintaining our ultra-flat ±3 dB frequency response. This means true, pure clean video at every destination, every time.
- Ultra-flat video bandpass curve measured at a tight ±3 dB
- 300 MHz bandwidth, fully-loaded worst case scenario
- Easily supports the highest analog video bandwidth requirements on the market
- PureSync™ Technology guarantees the quickest possible rise time of the sync signal's leading edge, eliminating the possibility of video loss at the display
- Digital volume control on each output
- Digital input gain control on each input to normalize audio input voltages
- Audio connections support balanced and unbalanced audio
- Audio breakaway to route audio-follow-video, video or audio alone
- Superior video crosstalk specifications ensure signal isolation and security
- Standard RS-232 control port
- Supports AutoPatch's simple BCS serial control protocol
- Optional TCP/IP control via external APWeb module

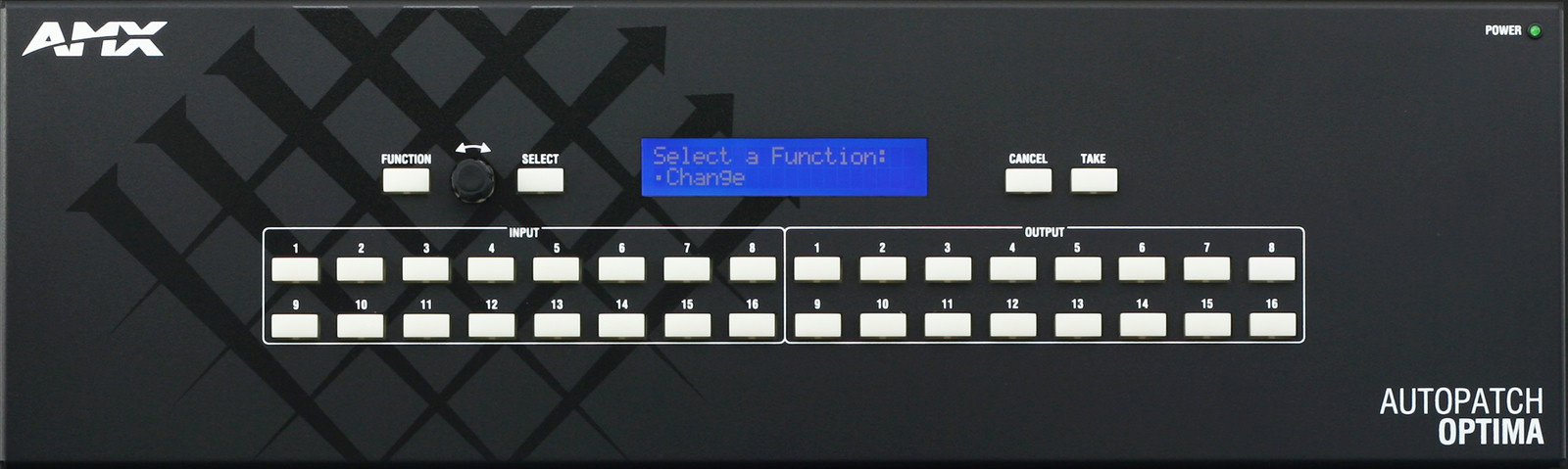

- Includes intuitive CP-15 front mounted control panel featuring LED backlit LCD and blue light buttons, allowing quick and easy access to execute many commands including status, change, disconnect, local presets, global presets, front panel lock and unlock, input gain, output volume, mute, level commands and more
- Front panel security lockout
- Ships with free AutoPatch matrix switcher configuration software
- Ships with free APControl to provide easy single-user PC control of the matrix switcher
- Includes AutoPatch's remote link for direct connect with AutoPatch remote panels and SBC control pads
- Rack mounting ears included
- Backed by our AMX 3 year warranty
Local presets allow quick recall of a pre-programmed set of switches with a single command; multiple presets can exist within a system at the same time
- Global presets allow quick recall of a comprehensive snapshot of all switches and digital volume controls
