Fixed Matrix Switchers 4 x 4 RGBHV Video HD-15, Stereo Audio, 3T Phoenix-style
OVERVIEW
The professional solution for RGBHV signal distribution, the Precis LT RGBHV + stereo matrix switchers are designed to route high resolution computer video and stereo audio signals. Video input and output signals are connected via HD-15 connectors and audio signals are connected via 3T Phoenix-style connectors. The Precis LT's front control panel allows for fast and convenient input and output selection. The standard RS-232 control port utilizes AutoPatch's BCS serial control protocol which allows it to be quickly and easily programmed when integrated into a control system. Available in I/O sizes from 4x4 to 8x8, the Precis LT provides a minimum of 300 MHz (±3 dB) RGB video bandwidth when fully loaded.
COMMON APPLICATION
Easily connect multiple RGBHV sources such as computers and satellite receivers to multiple displays; such as in small boardroom applications.
FEATURES
- Ultra-flat video bandpass curve measured at a tight ±3 dB
- 300 MHz bandwidth, fully-loaded worst case scenario
- Easily supports the highest analog video bandwidth requirements on the market
- PureSync™ Technology guarantees the quickest possible rise time of the sync signal's leading edge, eliminating the possibility of video loss at the display
- Audio connections support unbalanced audio
- Audio breakaway to route audio-follow-video, video or audio alone
- Superior video crosstalk specifications ensure signal isolation and security
- Standard RS-232 control port
- Supports AutoPatch's simple BCS serial control protocol
- Optional TCP/IP control via external APWeb module

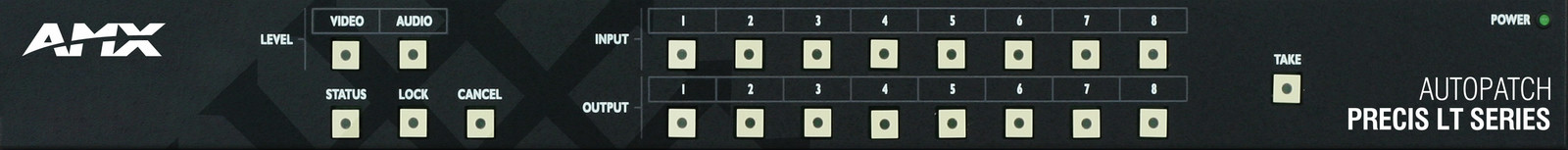

- Includes simple X/Y front mounted control panel
- Front panel security lockout
- Ships with free APControl to provide easy single-user PC control of the matrix switcher
- Rack mounting ears included
- Backed by our AMX 3 year warranty
